PRELOVEDNew

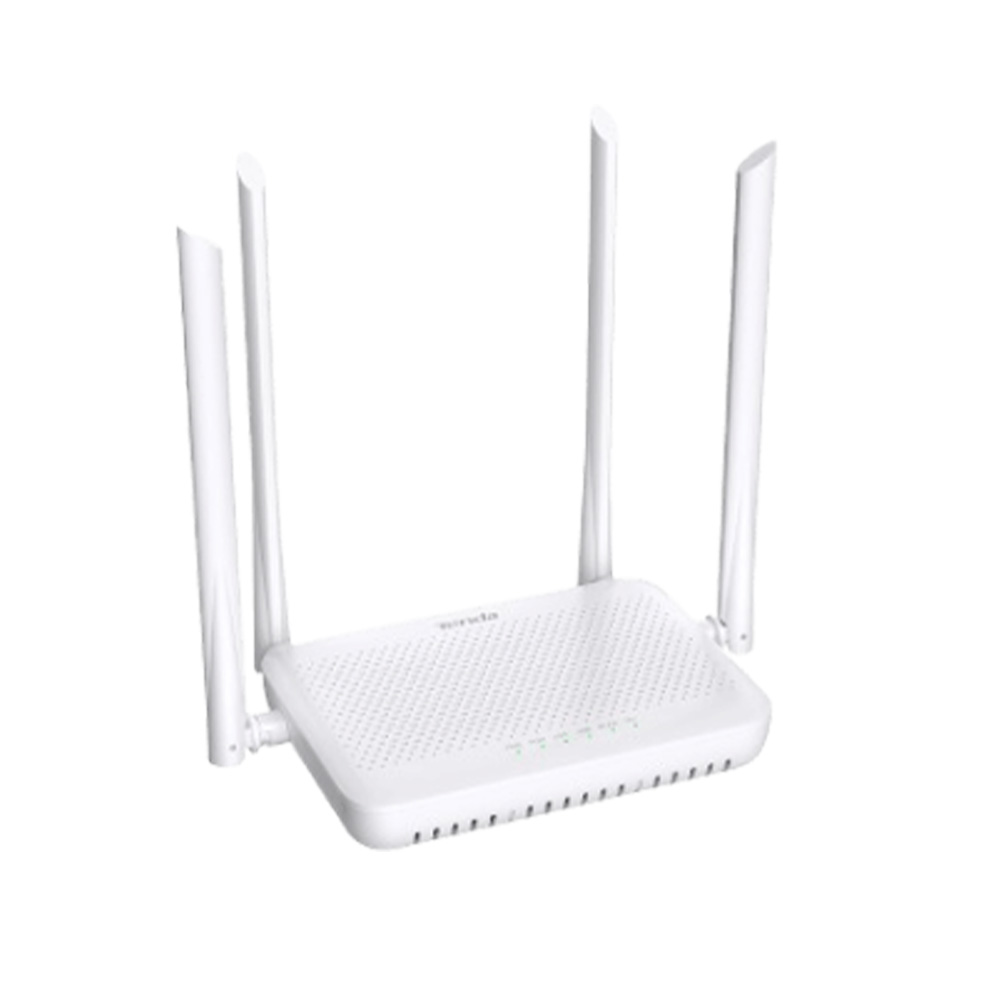

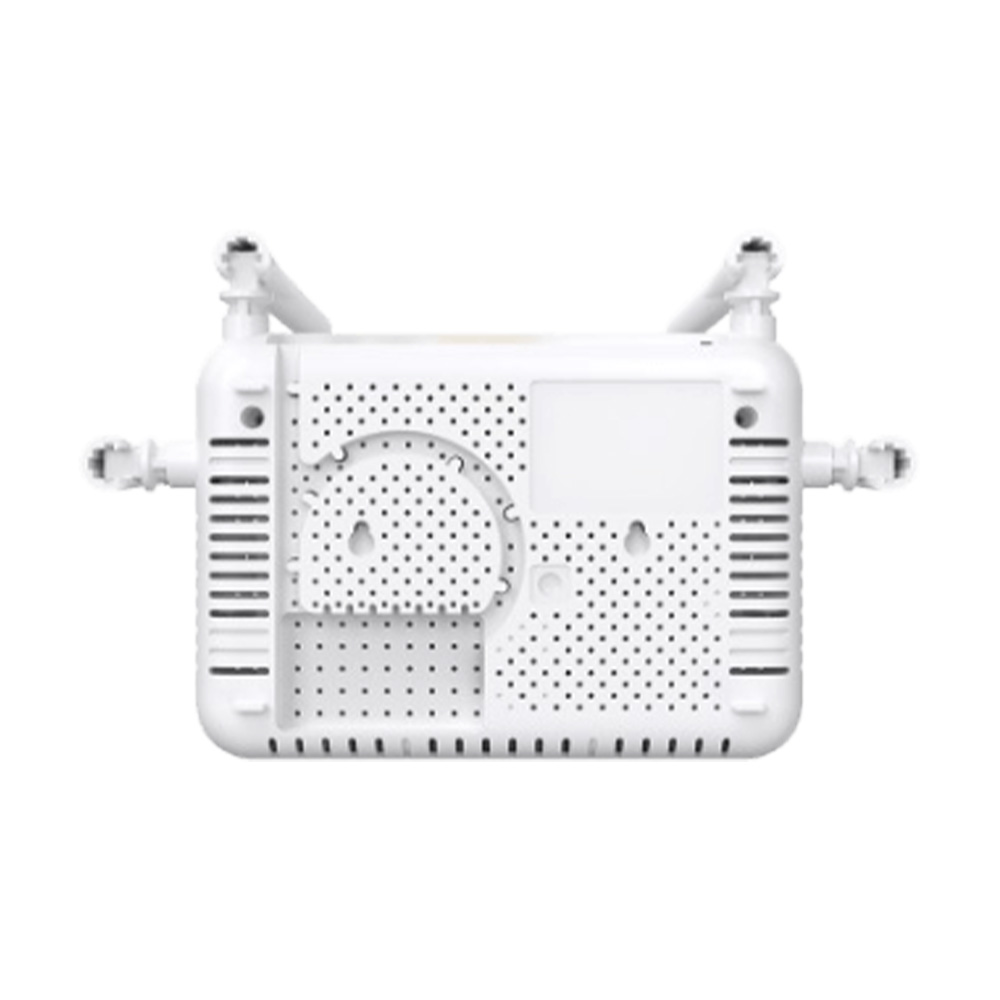

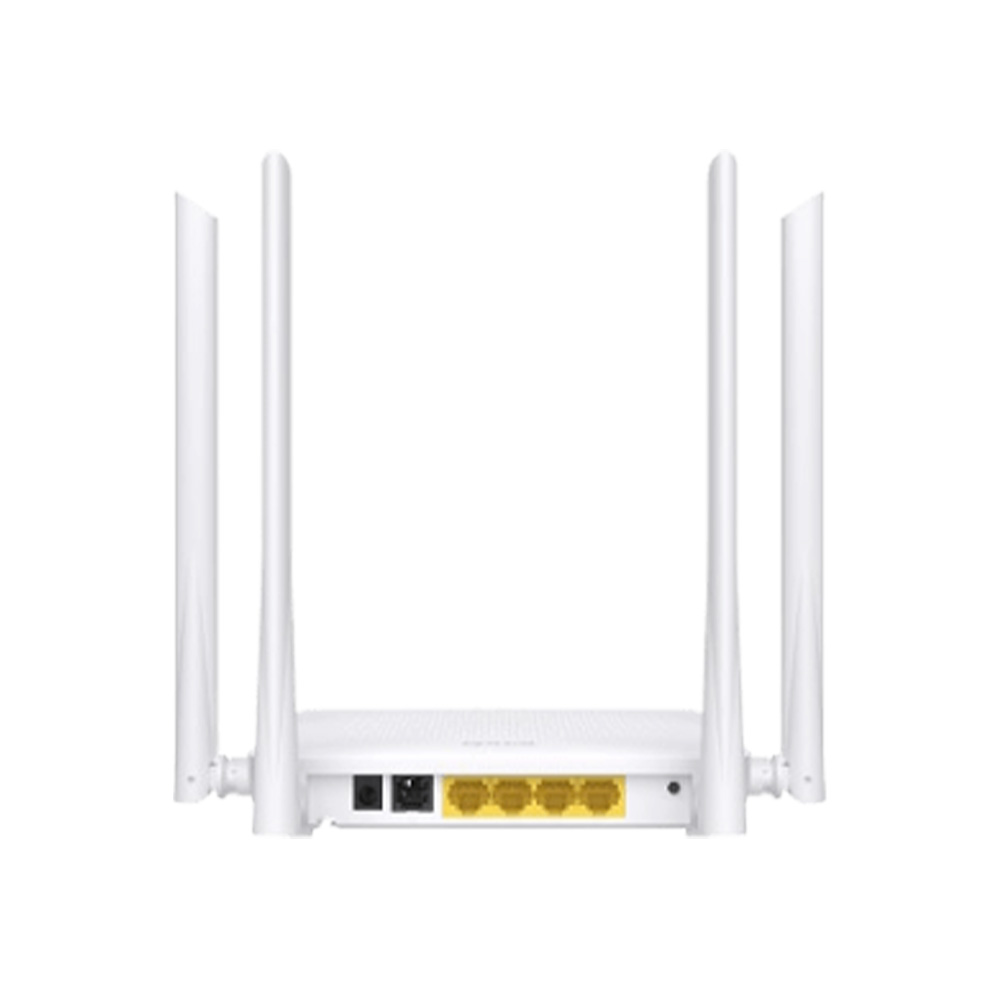

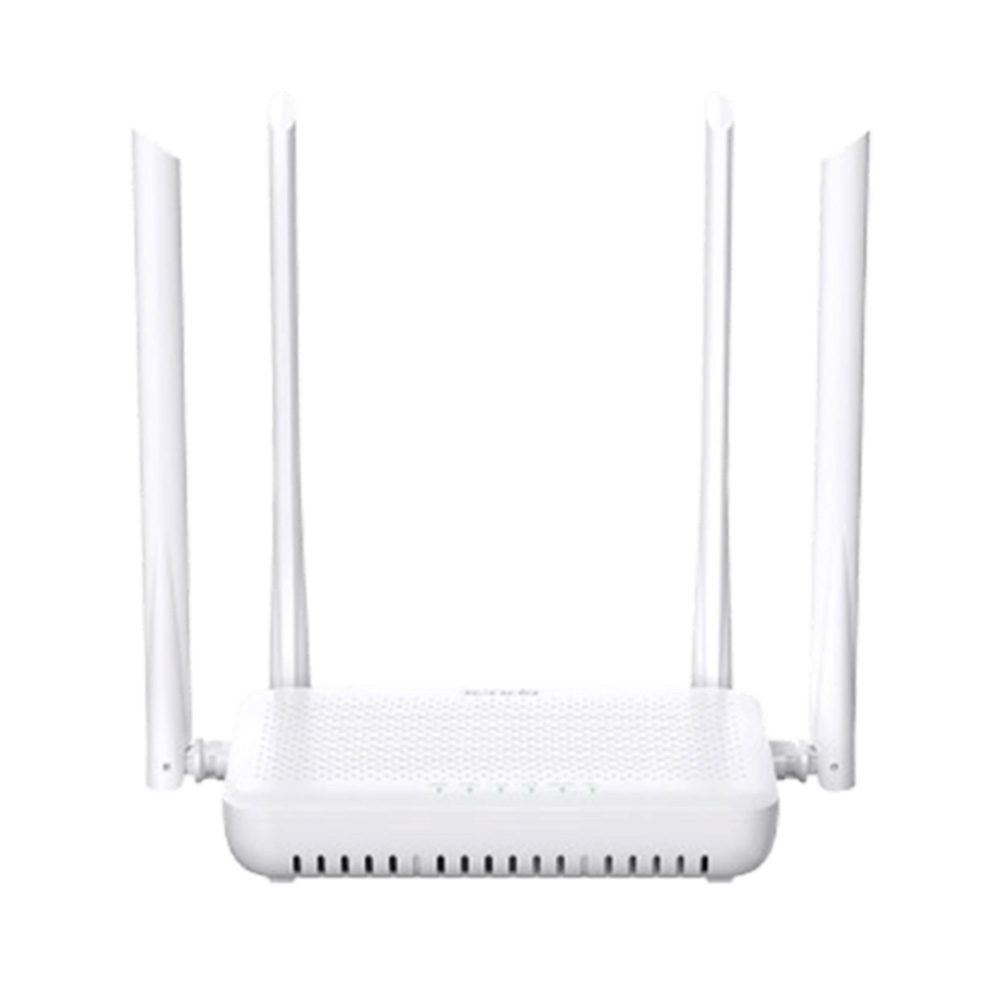

Tenda Router HG15 UPC Wi-Fi6 VoIP XPON ONT Ax1500 2.4 & 5Ghz 4 Antennas Gigabit
$58
- Wireless: Ax1500 wifi 6
- Interface: 1 *SC/APC or SC/UPc, 4 *1000Mbps RJ45 LAN, 1 *TEL, 1 *DC Power Port
- Antenna: 4x 6dBi antennas
- Frequency: 2.4GHz & 5GHz
- GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
- EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
- End face: Flat 0 degree
- Return loss: -50 dB
- Insertion loss: slightly lower
- Color: blue
- Application: Digital Data
- Interconnection: not compatible with APC
- Transmission Distance: 20km Max
- External Power Supply: DC 12V /1.5A
- Supports routing mode and bridge mode access
- Local Web management and optical power monitors
| HG15 | AX1500 Wi-Fi6 VoIP XPON ONT |
| IEEE Standards | IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z |
| PON Standards | GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 |
| EPON：IEEE 802.3 ah | |
| Interfaces | 1 *SC/APC or SC/UPC （optional）Port |
| 4 *1000Mbps RJ45 LAN Ports | |
| 1 *TEL Port | |
| 1 *DC Power | |
| LED Indicator | PWR, PON, LOS, LAN, WLAN, TEL |
| Button | 1 *RST/WPS Button |
| Optical Mode | Class B+ |
| Optical Wavelength | Transmit at 1310nm, Receive at 1490nm |
| Transmission Distance | 20km Max |
| Bandwidth | GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max |
| EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max | |
| Dimension | 220.8×141.9×31mm（L×W×H) |
| TX Power | 0.5~5dBm |
| RX Power | -28~-8dBm |
| External Power Supply | DC 12V /1.5A |
| Power Consumption | ≤18w |
| Software | |
| DHCP Server | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| WAN Connection | PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection |
| Business Type | TR069, Internet, IPTV, VoIP |
| Quality Of Service | Bandwidth Control |
| IP Version | IPv4, IPv6 |
| Services | DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh |
| VPN Pass-through | PPTP, L2TP, Ipsec Pass-through |
| Firewall | ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS |
| IPv6 | Radvd, DHCPv6, MLD Proxy, MLD Snooping |
| Diagnostics | Ping, Ping6, Tracert, Tracert6 |
| TR069 | ACS, Connection request |
| VoIP | Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm |
| Wireless | |
| Frequency | 2.4GHz & 5GHz |
| Bandwidth | 2.4G :20M/40M |
| 5G: 20M/40M/80M | |
| Channel Range | 2.4G : CH1-CH13 |
| 5G : CH36-CH48, CH149-CH165 | |
| Antenna | 4 *6 dBi Antenna |
| Easy Client Setup | WPS |
| Speed | 11n 300M + 11ax 1201M |
| Transmission Power | 2.4G: <25.5 dBm(EIRP) |
| 5G: <22.5dBm(EIRP) | |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO |
| Wireless Security | 64/128-bit WEP, WPA / WPA2/ WPA3 |
| SSIDs | Main SSID at 2.4Ghz and 5GHz |
| 4 Guest SSIDs Both At 2.4GHz and 5GHz | |
| Max Terminal Linked | 32 at both 2.4GHz and 5GHz |
| Environment | |
| Operation Temperature | 0°c ~ 45°c |
| Storage Temperature | -40°c ~ 70°c |
| Operating Humidity | 10% ~ 95% （Non-condensing） |
| Storage Humidity | 5% ~ 90% (Non-condensing) |
| Others | |
| Package Contents | 1*HG15, 1* Power adapter, 1* User manual, 1* RJ45 cable, 1*RJ11 cable |
| Certification | CE, FCC , RoHS，Anatel |
