PRELOVED

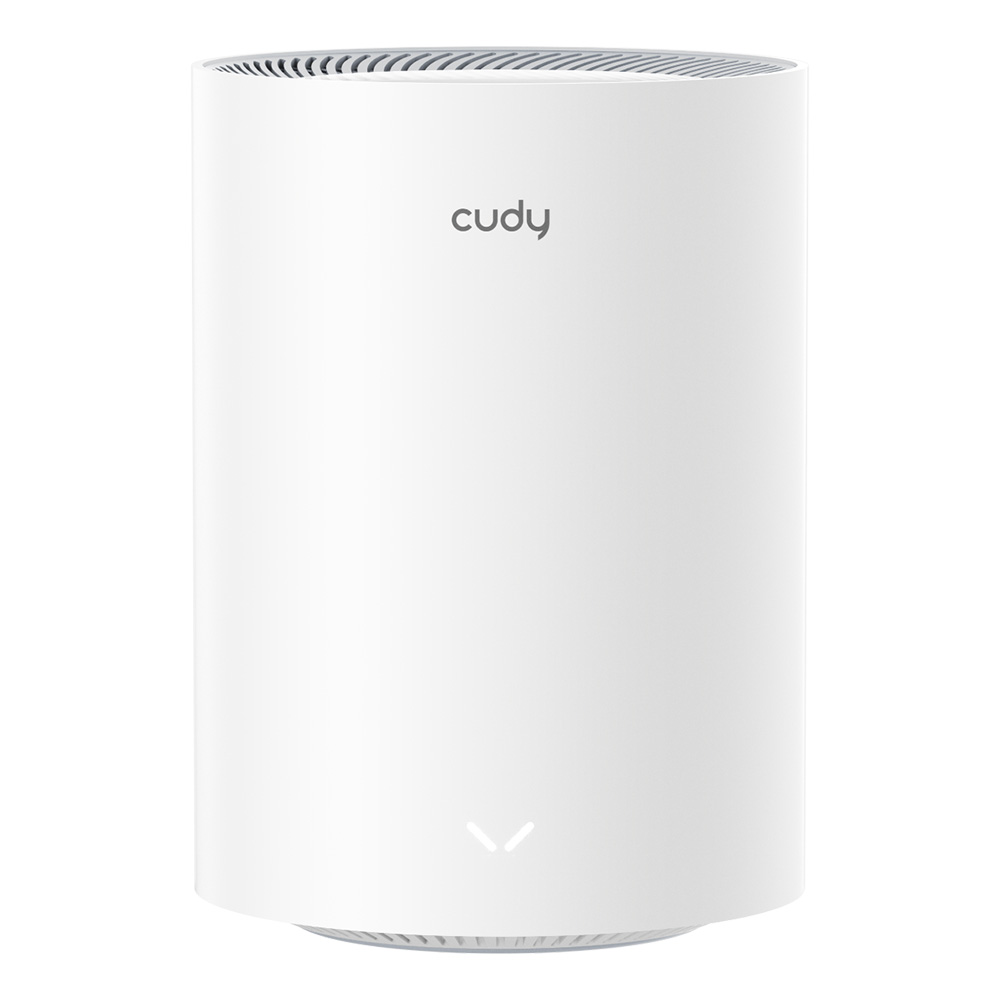

Cudy AX3000 2.5G Mesh Wi-Fi 6 System White – M3000 2.0
$45
- 1.3 GHz Dual-Core CPU
- 4-Stream Dual-Band Wi-Fi 6
- 2402 Mbps + 574 Mbps Wi-Fi
- 200 Connected Devices
- Fast Roaming
- Cudy Mesh, VPN Server and Client
- Multi-Band Simultaneous Backhaul
- Cudy App, Cloud Control
No-Buffer 4K Streaming. Responsive FPS Gaming.
Enjoy super-responsive gaming and video playback with the top-notch 160 MHz bandwidth and high RAM.
Families, Friends, IoT, All Onboard.
Powerful CPU, DL/UL OFDMA, and MU-MIMO reduce latency while connecting hundreds of devices.
Easy to Use, Versatile Functions
Control Online Time & Content
Regulate your kids’ online activities by setting an online time duration for their devices and banning inappropriate web domains.
Secure Personal Network
WPA3 protects your wireless from brute-force attacks. Guest Network separates your own devices and guests’ devices to improve security.
VPN Server and Client
Six built-in protocols provide compatibility with 50+ commercial VPN providers and enable you to host your own VPN server.
Know Your Network
The system panel provides intuitive information for you to know network status. Built-in diag-tool helps locate problems and troubleshooting easier.
Cudy App
Manage your network from your phone. This model supports cloud remote control and local control via the Cudy App.
| Model Version | M3000 2.0 | |
|---|---|---|
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams | |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Wi-Fi Antennas | 5× Internal | |
| FEM or PA/LNA |
|
|
| Beamforming | ||
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4”) One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”) |
|
| Indoor Coverage Reference | 2 Pack: 200 m² (2100 sq ft) 3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. You may see different figures on the older retail box which is based on test taken in wooden structure, while the figures on the website is taken from a concrete structure. |
|

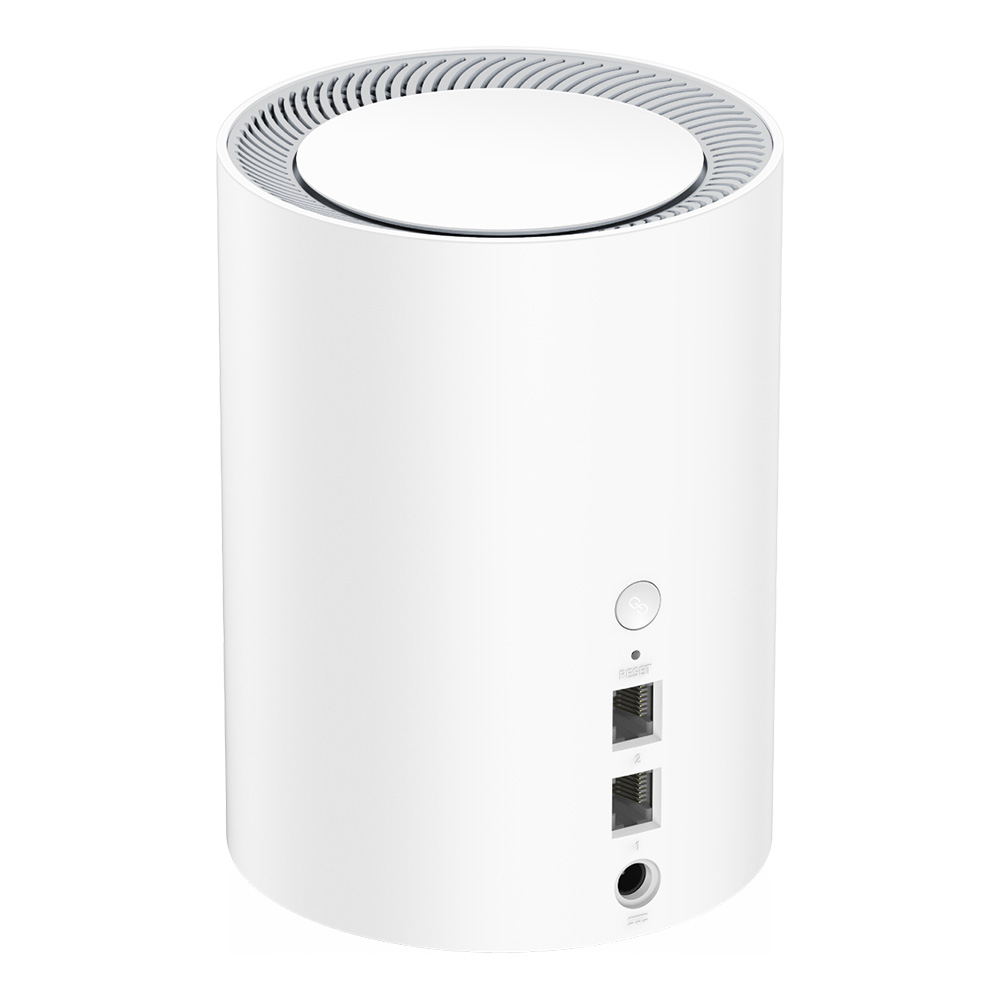

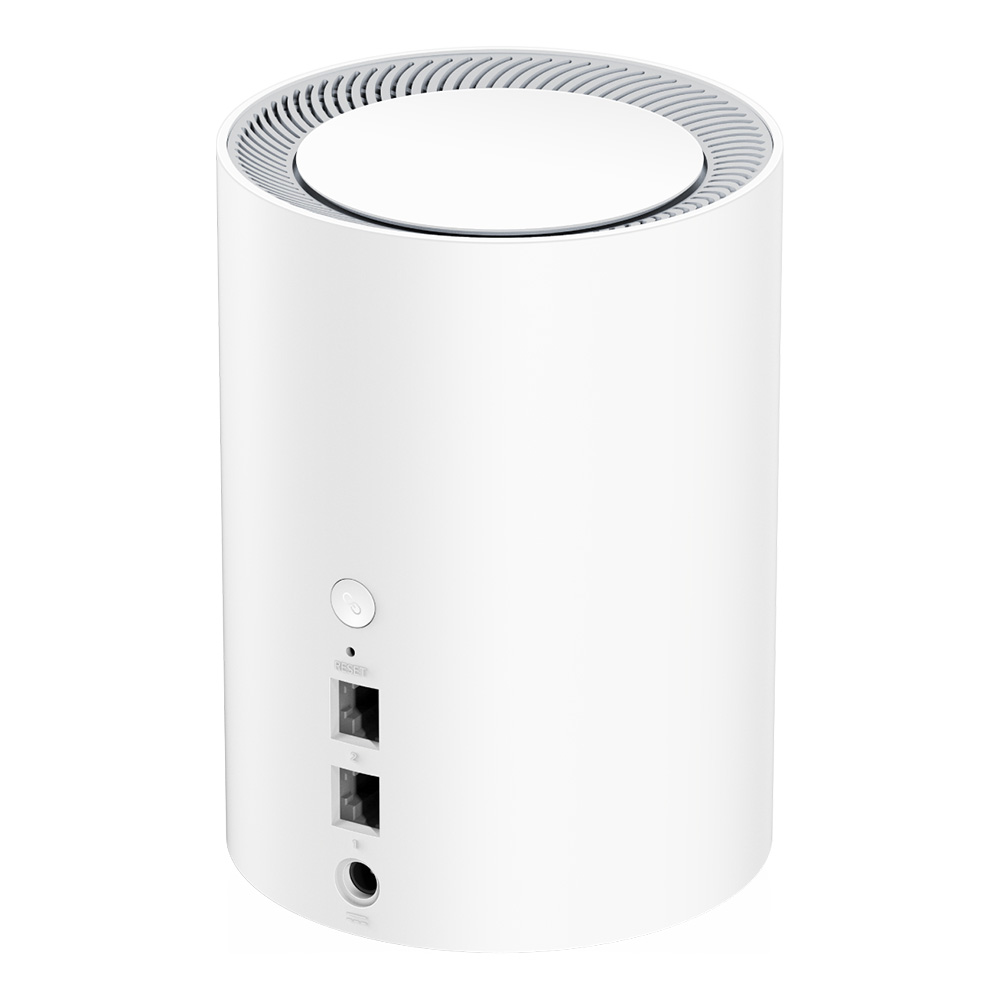

| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 1 | |
| Ethernet Notes | The 2.5G port is the WAN port, the Gigabit port is LAN port | |
| LED |
|
|
| Physical Buttons |
|
|
| Power | Power Input Type | DC Jack |
| Power Methods | DC | |
| Power Input | 12V⎓1A | |
| Power Adapter In the Box | Input: 100-240V~, 50/60Hz Output: 12V⎓1A |
|
| Max Power Consumption (W) | 11.5W | |
| Idle Power Consumption (W) | 4.2W | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation | Desktop |
| Dimension | Φ110×154.5 mm Φ4.33×6.08 inches |
|
| Product Weight | 360 g (12.7 oz.) | |

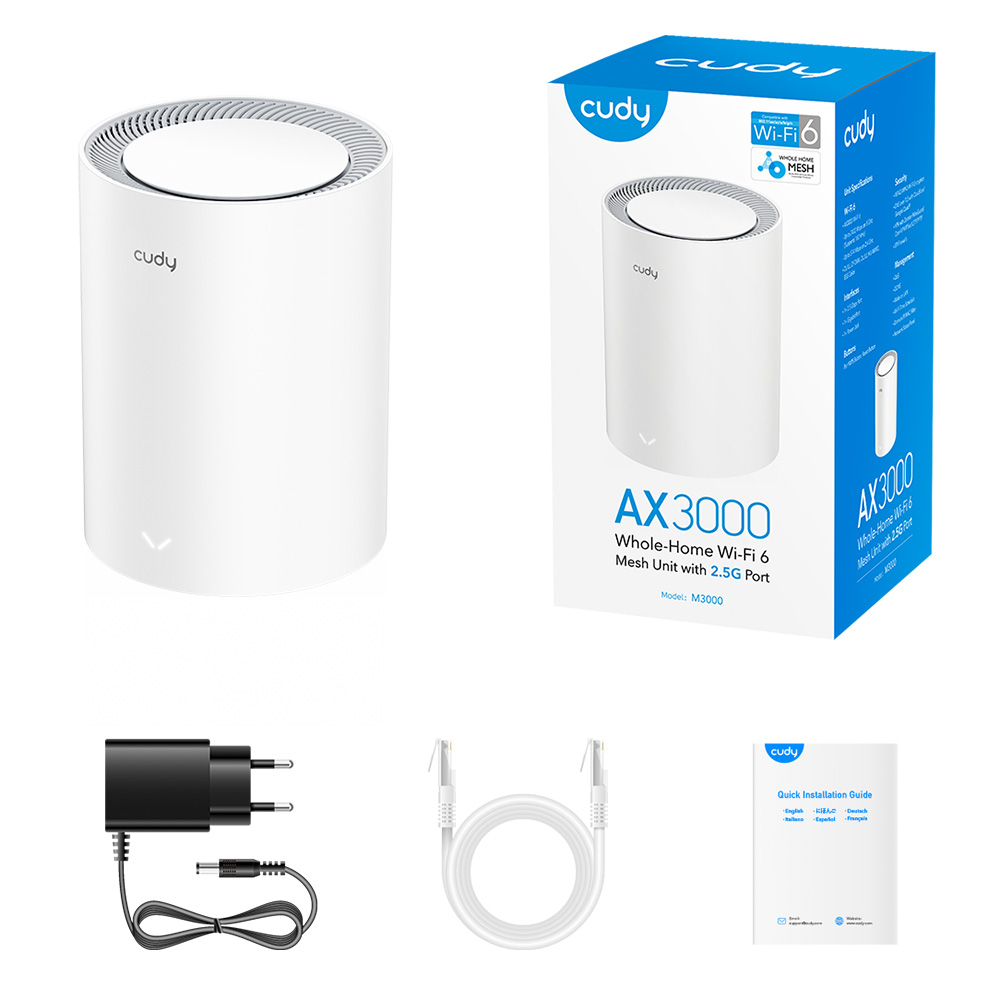

| Package Content |
|
|
| Ordering Information | Retail Package Weight |
|
| Retail Package Dimension |
|
|
| Units per Carton |
|
|
| Carton Dimension |
|
|
| Carton Gross Weight |
|
|
| Carton Net Weight |
|
|
| Power | Power Output | 4.2W |
