| V15 | AX1500 Wi-Fi 6 Gigabit VDSL/ADSL Modem Router |
| Hardware | |

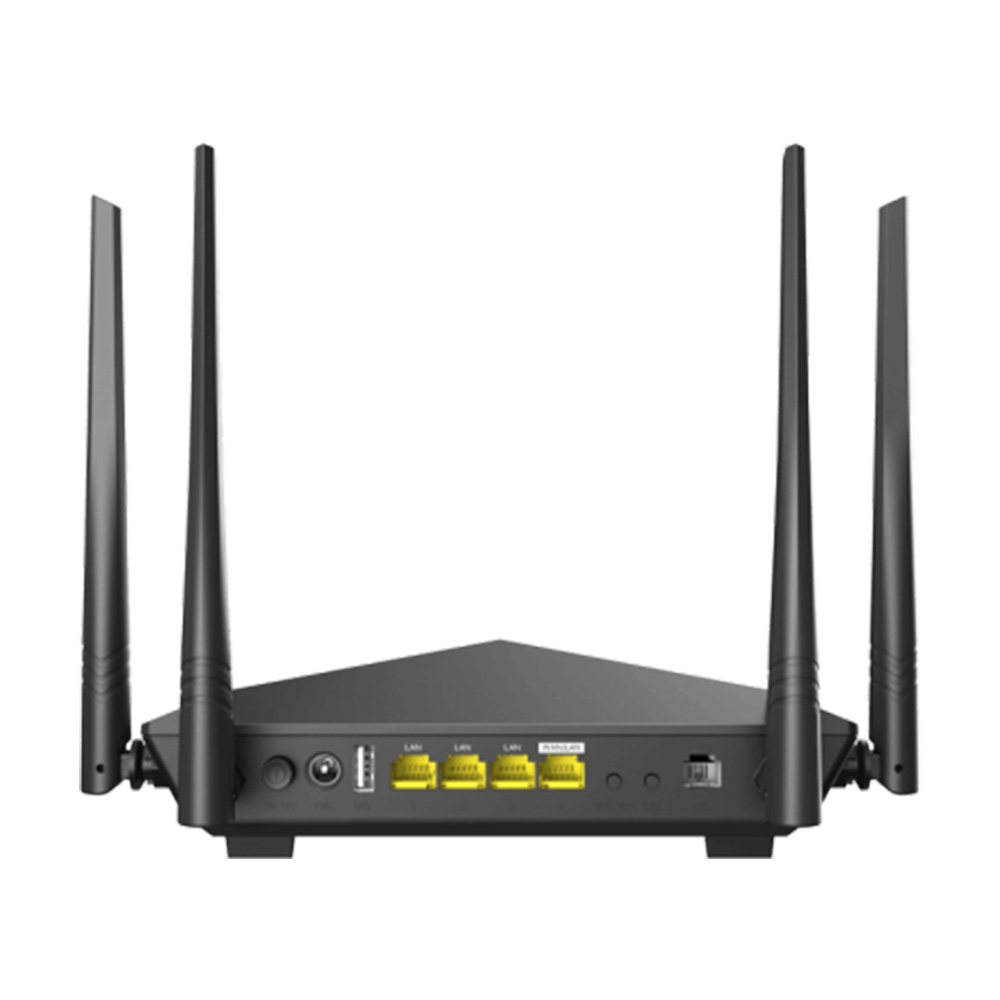

| Interfaces | 3 *10/100/1000 RJ45 LAN Ports |
| 1 *10/100/1000 RJ45 LAN/WAN Port | |
| 1 *RJ11 Port | |
| 1 * USB 2.0 Port | |
| Button | WPS&Wi-Fi |
| RST | |
| Power | |
| External Power Supply | 12V 1.5A |
| IEEE Standards | IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax, IEEE 802.3, 802.3u, IEEE 802.1Q |
| VDSL2 Standards | ITU G.993.2, Up to 17a /30a/35b profile |
| ITU-T G.993.5 (G.vector) | |
| ITU-T G.998.4 (G.INP) | |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 |
| ITU-T G.992.1(G.DMT) | |
| ITU-T G.992.2(G.Lite) | |
| ITU-T G.994.1 (G.hs) | |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( Wx D x H) | 220×141.6x59mm |
| Antenna Type | 4 * 5 dBi Antenna |
| Wireless | |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz |
| IEEE 802.11b/g/n 2.4GHz | |
| Frequency | 20M/40M/80M |
| Signal Rate | 300Mbps at 2.4GHz |
| 1201Mbps at 5GHz | |
| Wireless Functions | Enable/Disable Wireless Radio |
| Guest network | |
| Access Control | |
| WPS | |
| MESH | |
| Wireless Security | None, WPA, WPA2, WPA/WPA2, WPA3 |
| Transmission Power | 2.4GHz <20dBm(EIRP) |
| 5GHz <23dBm(EIRP) | |
| Wireless Schedule | Support |
| Software | |
| Advanced Features | PVC Configuration |
| DSL Settings | |
| Routing | |
| QoS( Based IP ) | |
| Security | MAC Filtering |
| IP/Port Filtering | |
| URL Blocking | |
| DOS | |
| Operating Modes | VDSL/ADSL Modem Router |
| Wireless Router | |
| Management | Web Based Conguration(HTTP) |
| Remote management | |
| command Line Interface | |
| SSL for TR-069 | |
| SNMP v1/2c | |
| Web Based Firmware Upgrade | |
| Diagnostic Tools | |
| DHCP | DHCP Server |
| Client List | |
| Address Reservation | |
| Port Forwarding | Port Forwarding, UPnP, DMZ |
| Dynamic DNS | Support |
| VPN | PPTP |
| L2TP | |
| IPsec | |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 |
| PPP over ATM (RFC 2364) | |
| PPP over Ethernet (RFC2516) | |
| IPoA (RFC1577/2225) | |
| MER\IPoE (RFC 1483 Routed) | |
| Bridge (RFC1483 Bridge) | |
| PVC – Up to 8 PVCs | |
| Guest Network | Support |
| Certifications | |
| Certifications | CE、RoHS |
| Environment | |
| Storage Temperature | -40℃ ~ 70℃ |
| Operation Temperature | 0℃~40℃(32℉ ~104℉) |
| Operating Humidity | 10% ~ 90% (Non-condensing) |
| Storage Humidity | 5% ~ 90% (Non-condensing) |
| Package Contents | |
| Package Contents | AX1500 Dualband Wi-Fi 6 Gigabit VDSL Modem Router*1 |
| External Splitter*1 | |
| Power Adapter*1 | |
| RJ11 DSL Cable*2 | |
| RJ45 Ethernet Cable*1 | |
| Quick Installation Guide*1 | |

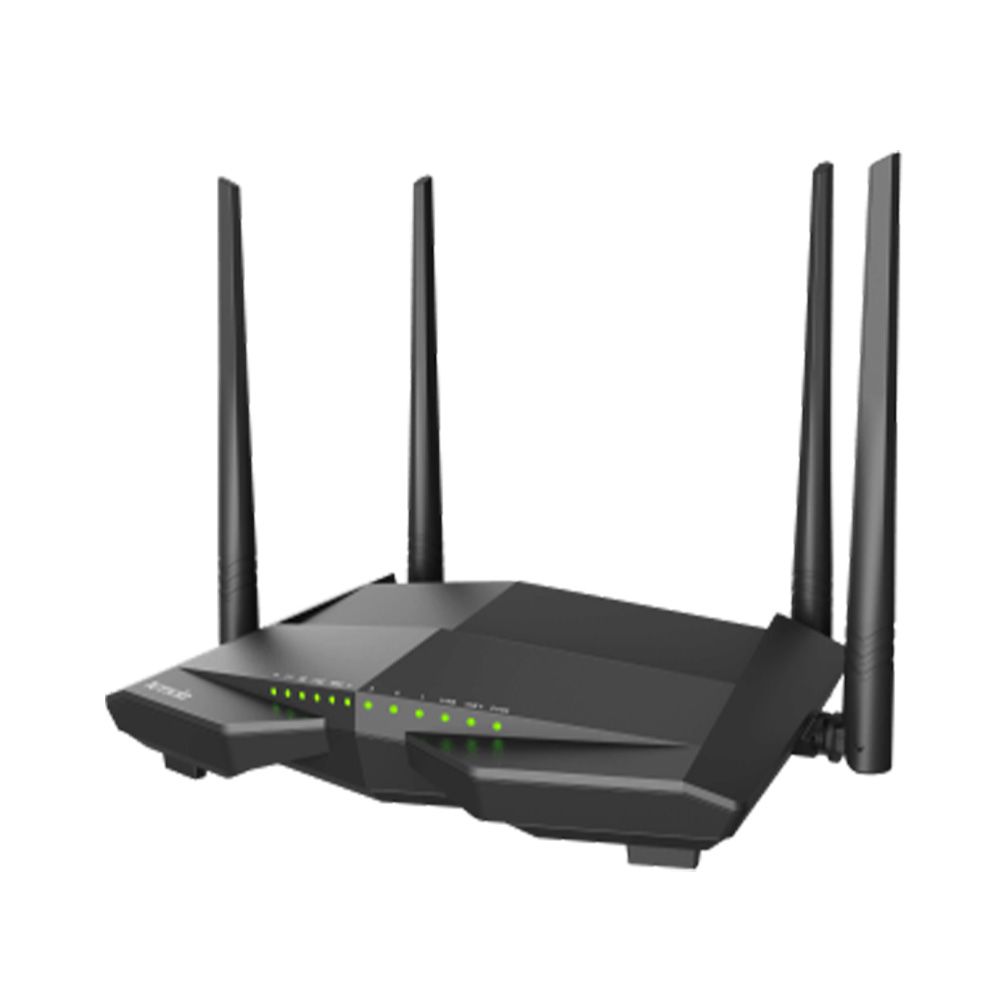

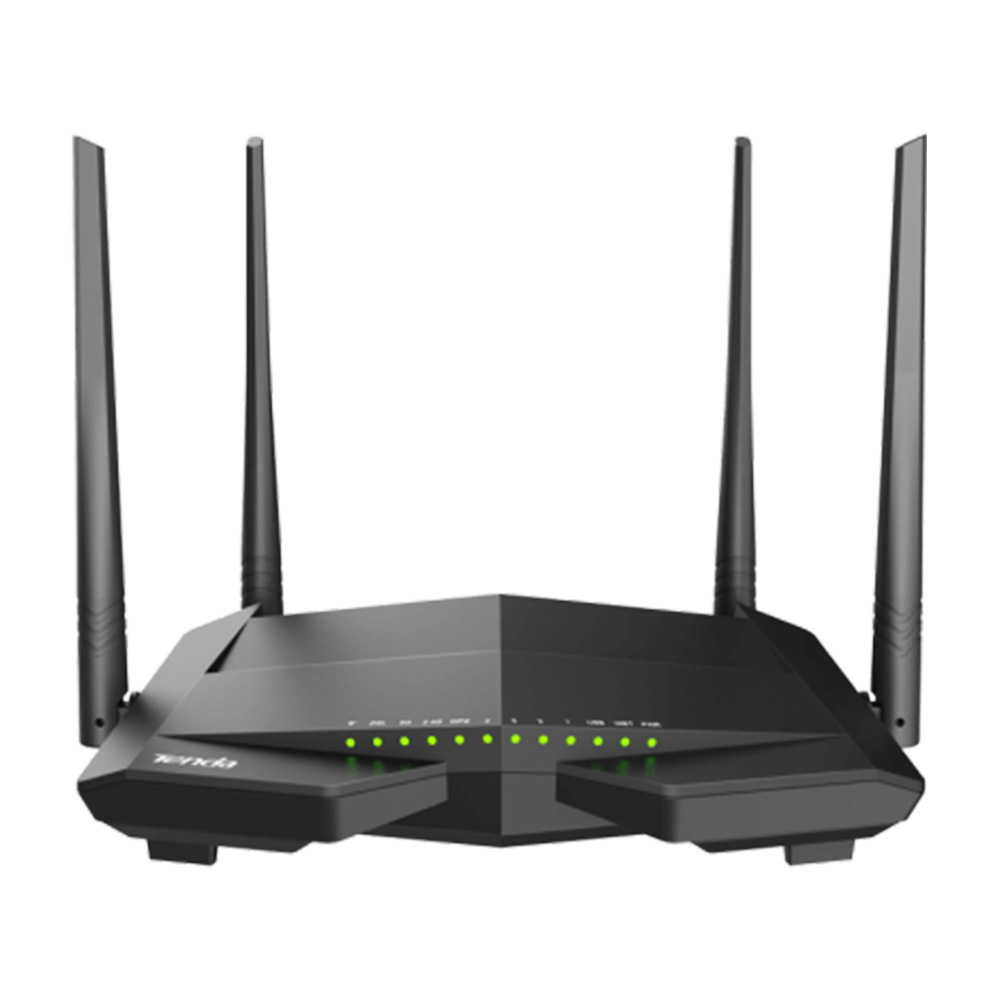

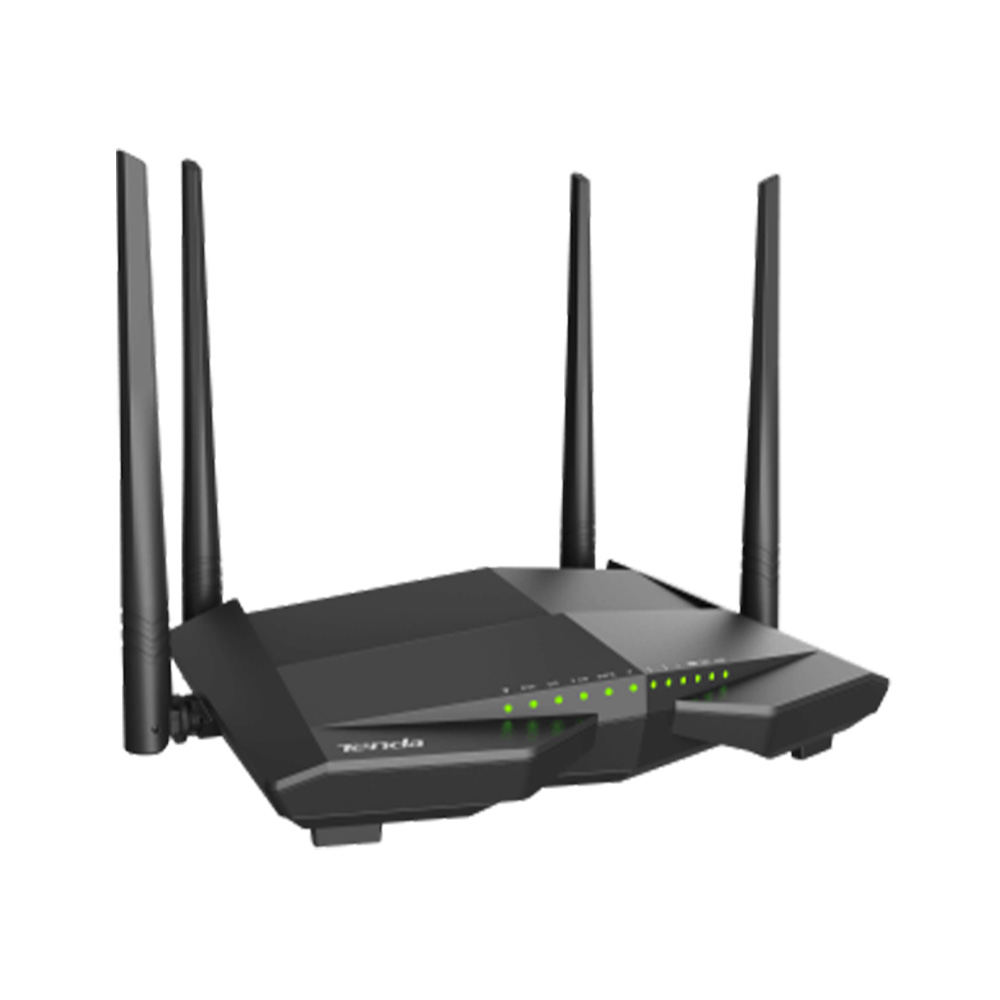

Tenda VDSL/ADSL Router V15 AX1500 2.4 & 5Ghz 4 Antennas Gigabit WIFI 6
Call for price
- 4 Gigabit Ethernet Ports
- 4 High-Gain External Antennas
- AX1500 Dual-Band Wi-Fi
- High-Speed VDSL Standards
- Wi-Fi 6 Technology
