New

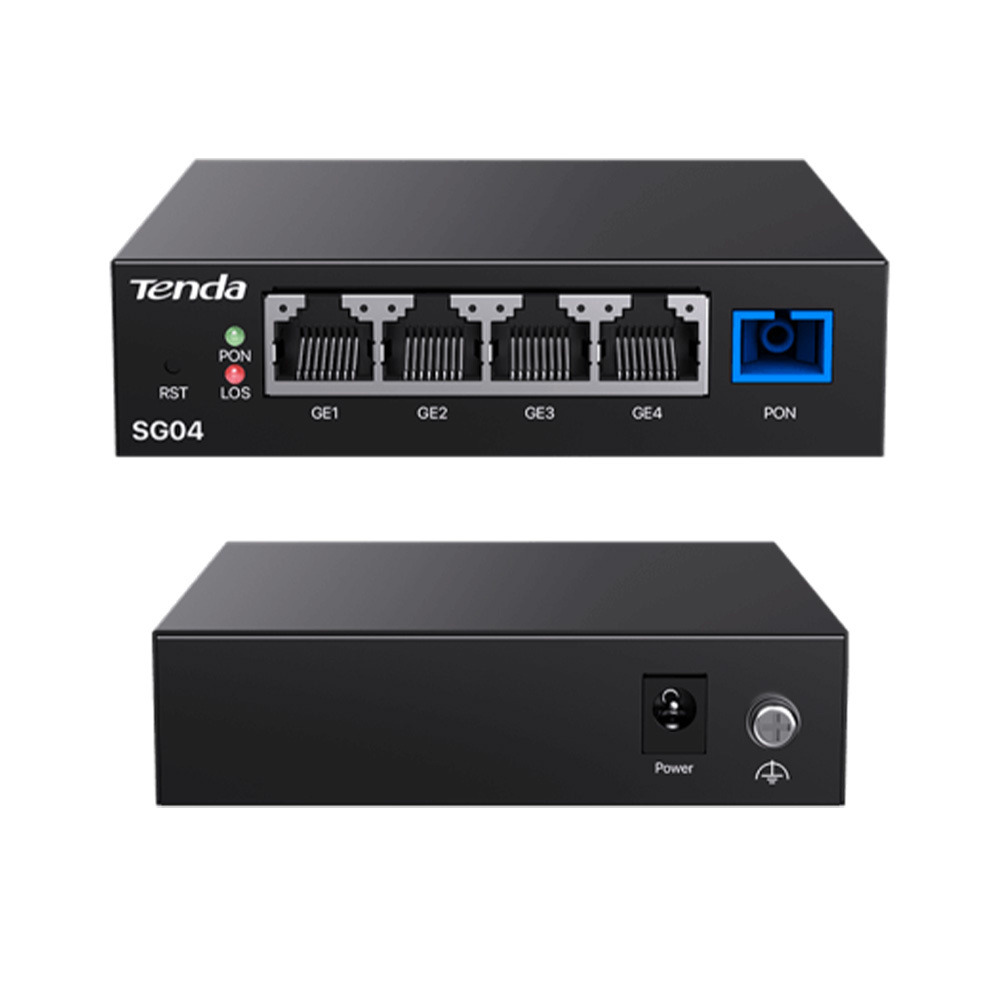

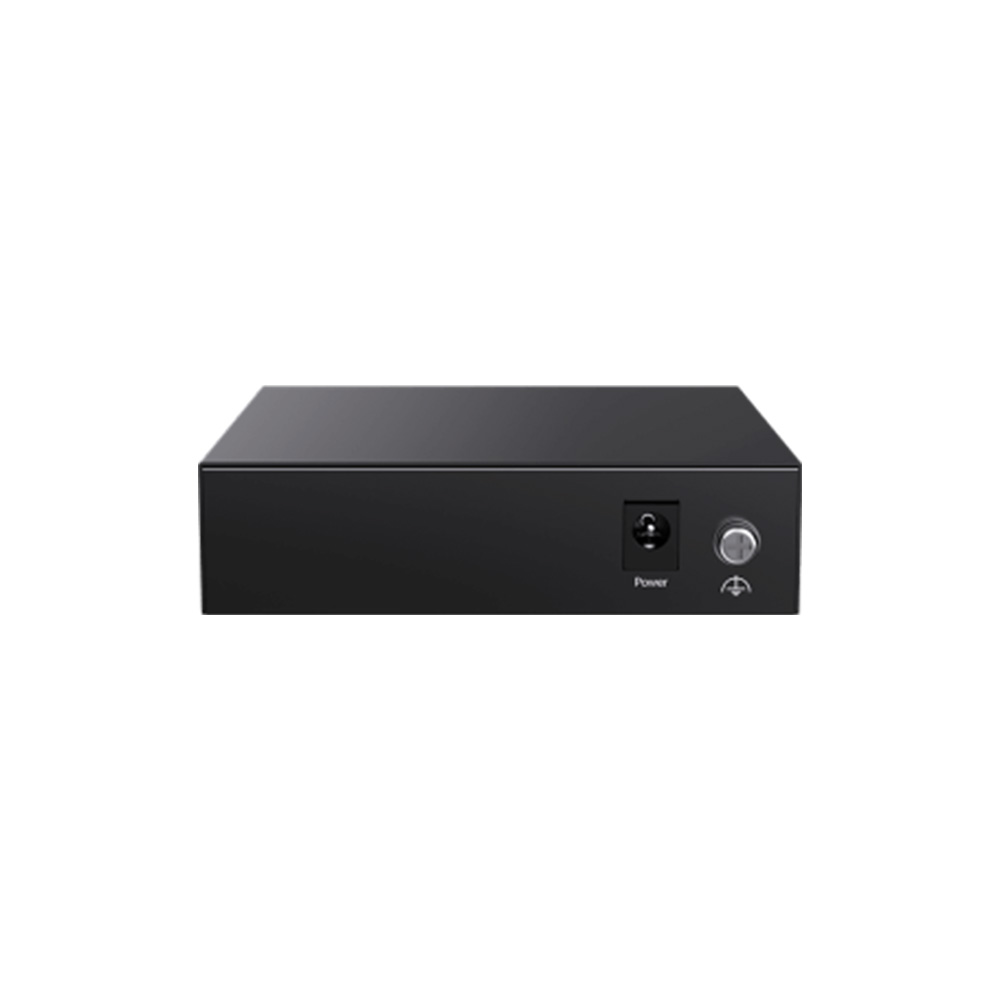

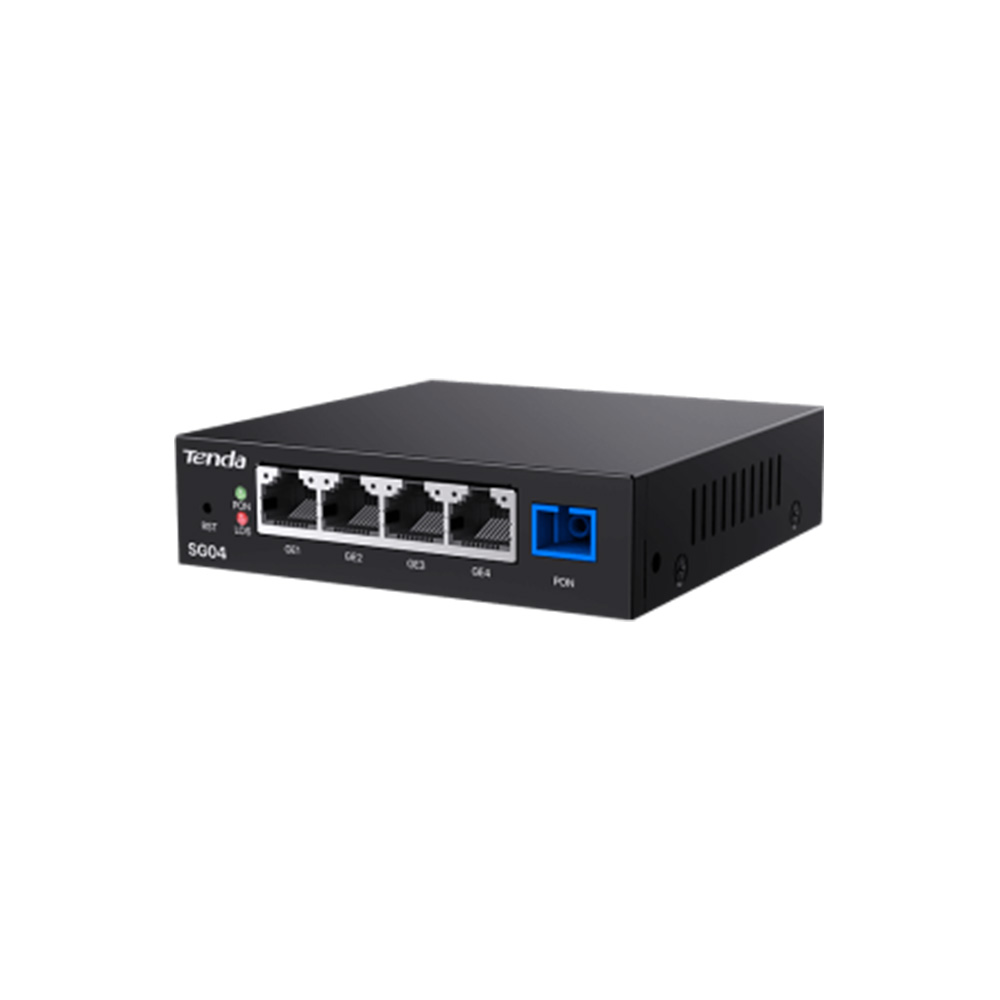

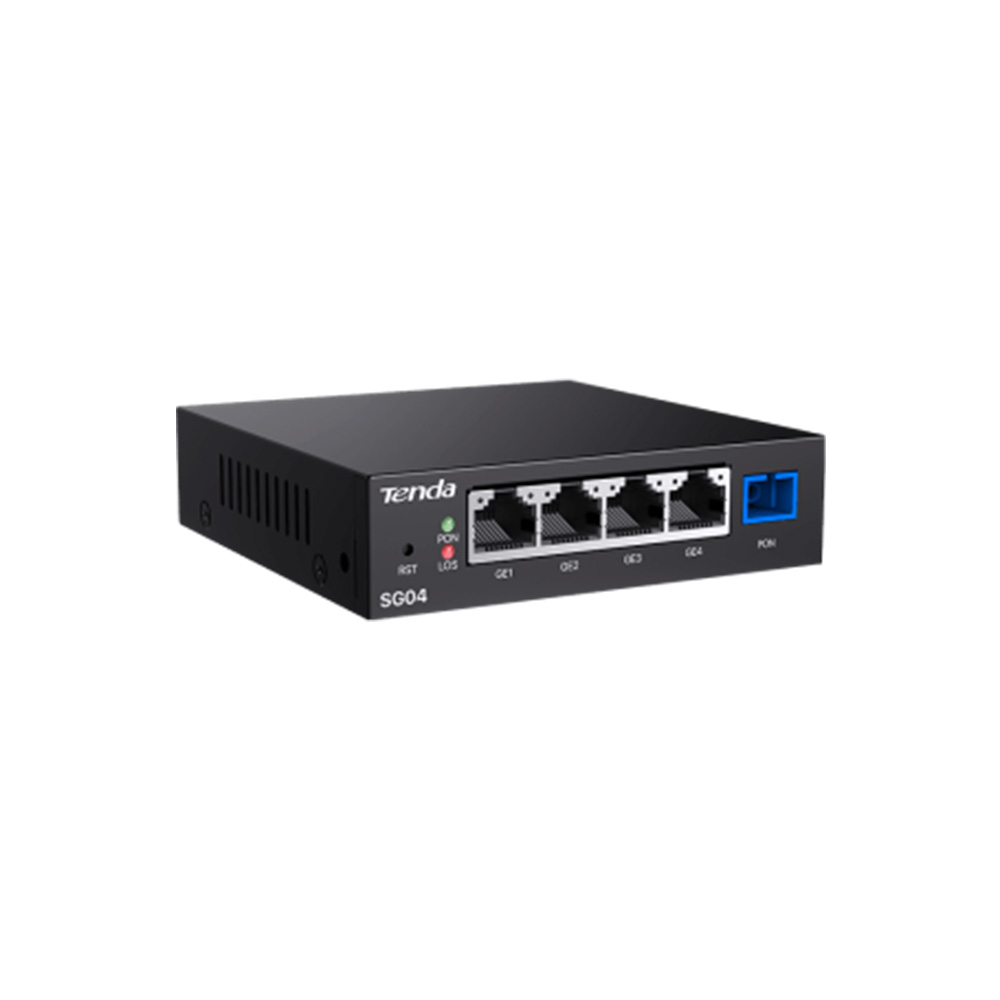

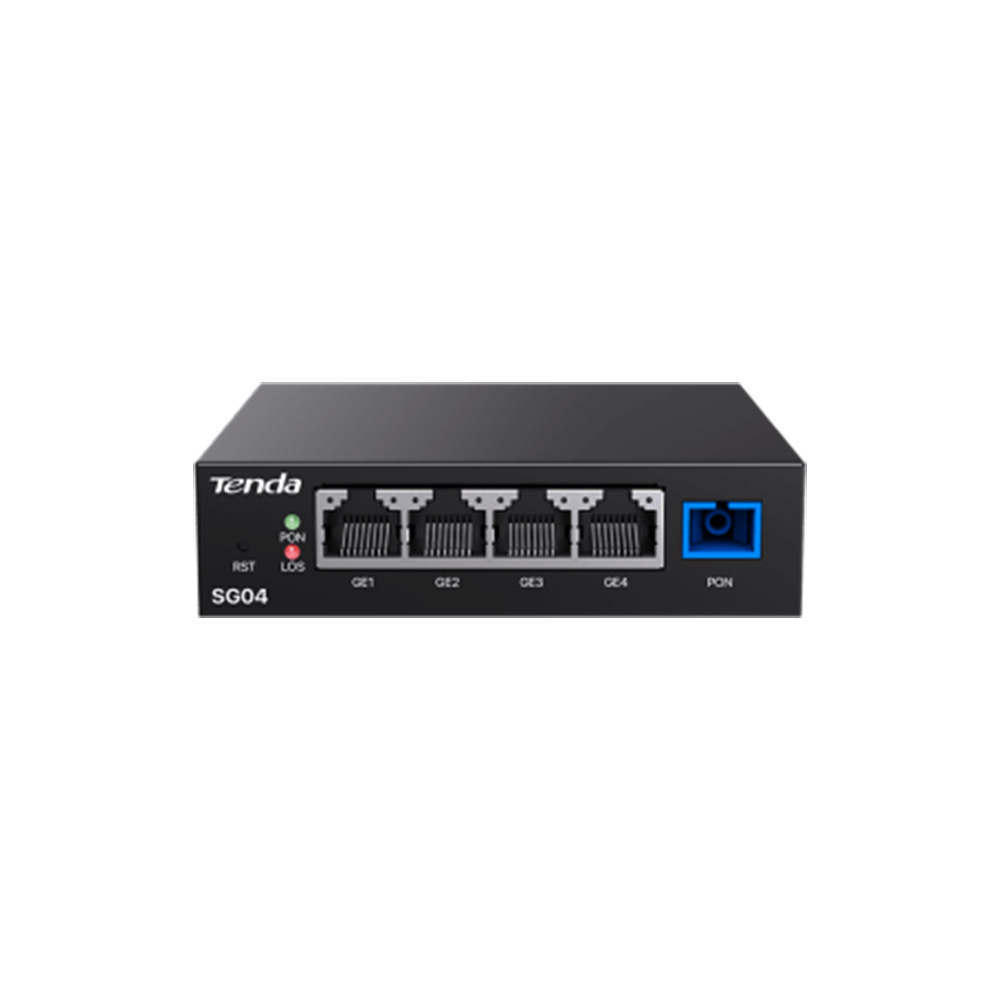

Tenda Router SG04 APC XPON ONT 4 GE Ethernet ports Gigabit

Interface: 1 *SC/APC or SC/UPc (Optional), 4 *1000Mbps RJ45 LAN, 1 *DC Power Port
GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
End face: Angled 8 degree
Return loss: -60 dB or better
Insertion loss: slightly higher
Color: Green
Application: Analog/Video/RF/FTTX
Interconnection: not compatible with UPC
Transmission Distance: 20km Max
External Power Supply: DC 12V /1A
Supports bridge mode access
Local Web management and optical power monitors

Category: Networking Brand: Tenda

SG04	4GE xPON ONU
Hardware Features
Standards	ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
	IEEE802.3ah
Interface	1*SC/APC or SC/UPC （optional）Port
	4*1000Mbps RJ45 LAN Ports
	1*DC Power
LED	PON、LOS、LAN
Button	1*RST Button
Optical Mode	Class B+
Optical Wavelength	Transmit at 1310nm
	Receive at 1490nm
Transmission Distance	20km Max
Bandwidth	EPON：Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
	GPON：Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
Dimensions （L×W×H);	100×100×26mm
TX Power	0.5~5dBm
RX Power	-28~-8dBm
lightning Surge	GE: Differential mode:1KV
	Common mode:6KV
	AC Power：Differential mode:4KV
	Common mode:4KV
External Power Supply	DC 12V /1A
Power Consumption	≤3w
Certification	CE, RoHS
Software Features
WAN Connection	Bridge Mode
Business Type	Internet
IP Version	IPv4
Environment
Operating Temperature	-20℃ ~ 55℃
Storage Temperature	-40℃ ~ 70℃
Operating Humidity	10% ~ 95% （Non-condensing）
Storage Humidity	5% ~ 90% (Non-condensing)
