| TN3108-8P | 8-Channel PoE UHD Network Video Recorder |
| Video&Audio Output | |
| HDMI Output | 1-ch, 4K(3840×2160) |
| /30Hz, 2560 × 1440/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz | |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| Output Bandwidth | 60 Mbps |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Decoding | |
| Video Decoding Format | H.265+, H.265, H.264+, H.264 |
| Audio Decoding Format | G.711A, G.711U, G726 |
| Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 |
| Decoding Capability | 4-ch@1080P(30 fps) |
| Stream Type | Video, Video & Audio |
| Recording Management | |
| Record Mode | Normal, Alarm |
| Playback Mode | Instant, Channel, File, Tag |
| Sync Playback | Up to 8-ch |
| Backup Mode | USB device |
| Network Managemants | |
| Client | TDSEE (mobile phone), TDSEE STUDIO (PC) |
| PoE | |
| PoE Port | 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3at/802.3af |
| PoE Power | ≤70 W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| General | |
| Power | 53VDC, 2.25A |
| Dimension | 255 mm x 216 mm x 44 mm (10 × 8.5 × 1.9) |
| Weight (Without HDD); | 768g(1.69lb) |
| Certification | CCC, CE, FCC, RoHS |
| Installation Method | Desktop mounting, wall mounting |
| Temperature | Operating Temperature: 0°C – 40°C (32°F – 104°F) |
| Storage Temperature: -30°C – 70°C (-22°F – 158°F) | |
| Humidity | Operating Humidity: 10% – 90% RH (non-condensing) |
| Storage Humidity: 5% – 95% RH (non-condensing) | |
| Video. | |
| IP Video Input | 8-ch |
| IP Video Resolution | Up to 8MP |
| Input Bandwidth | 60 Mbps |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Network | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Network Protocol | HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS |
| Web Browser | Plug-in free live view : Chrome, Edge, Opera |
| External Interface | |
| USB Port | 2 x USB 2.0 |
New

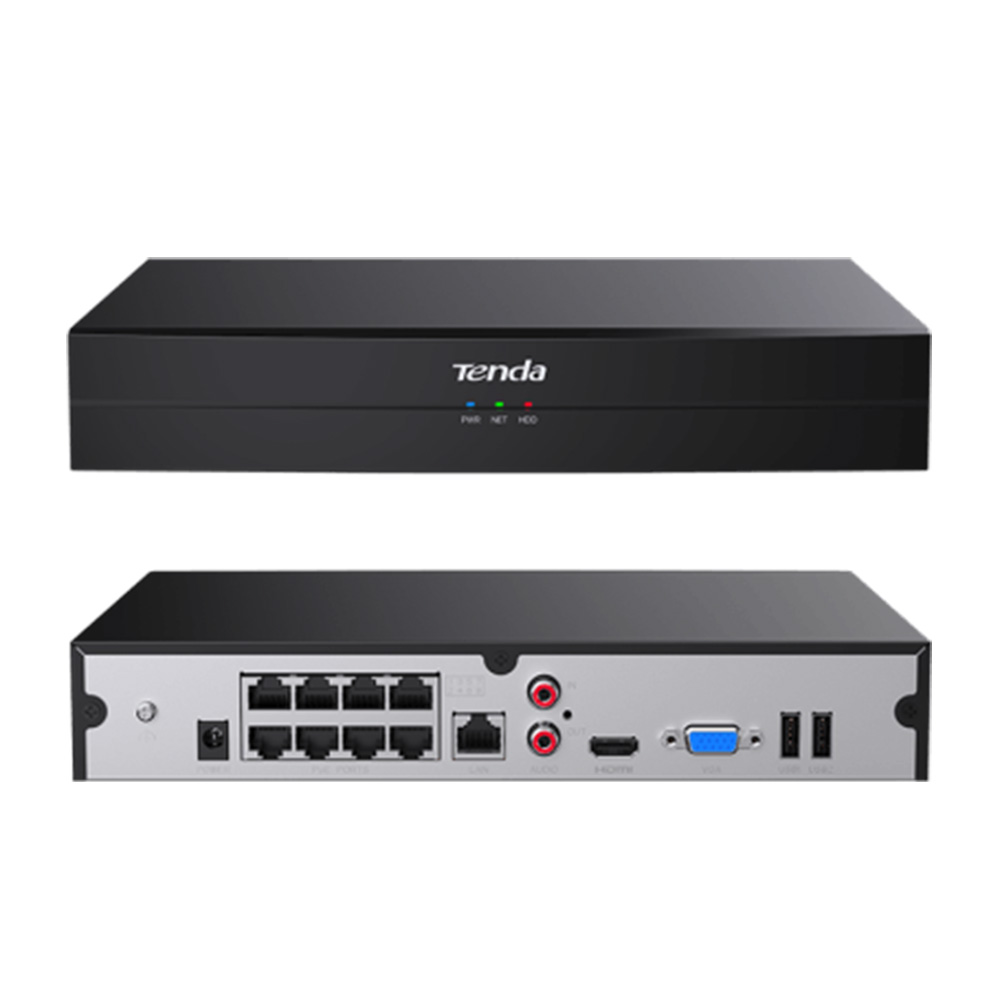

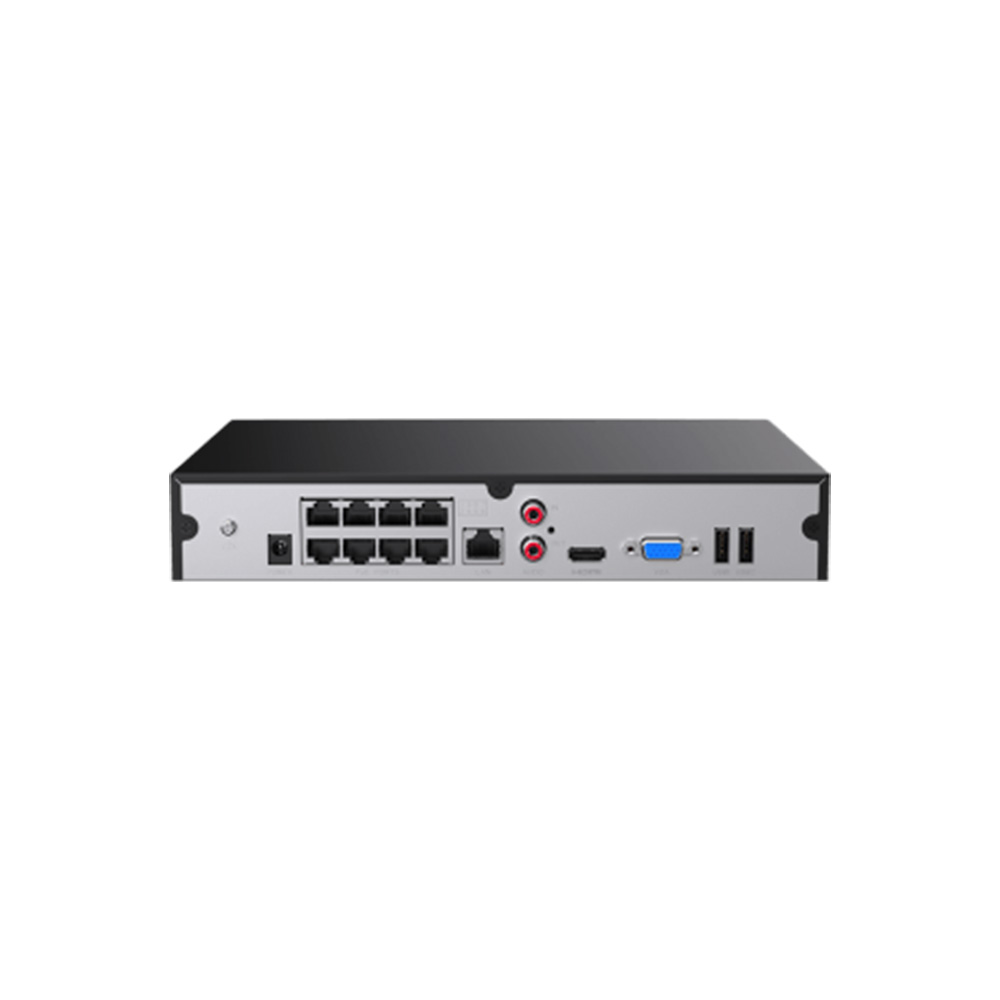

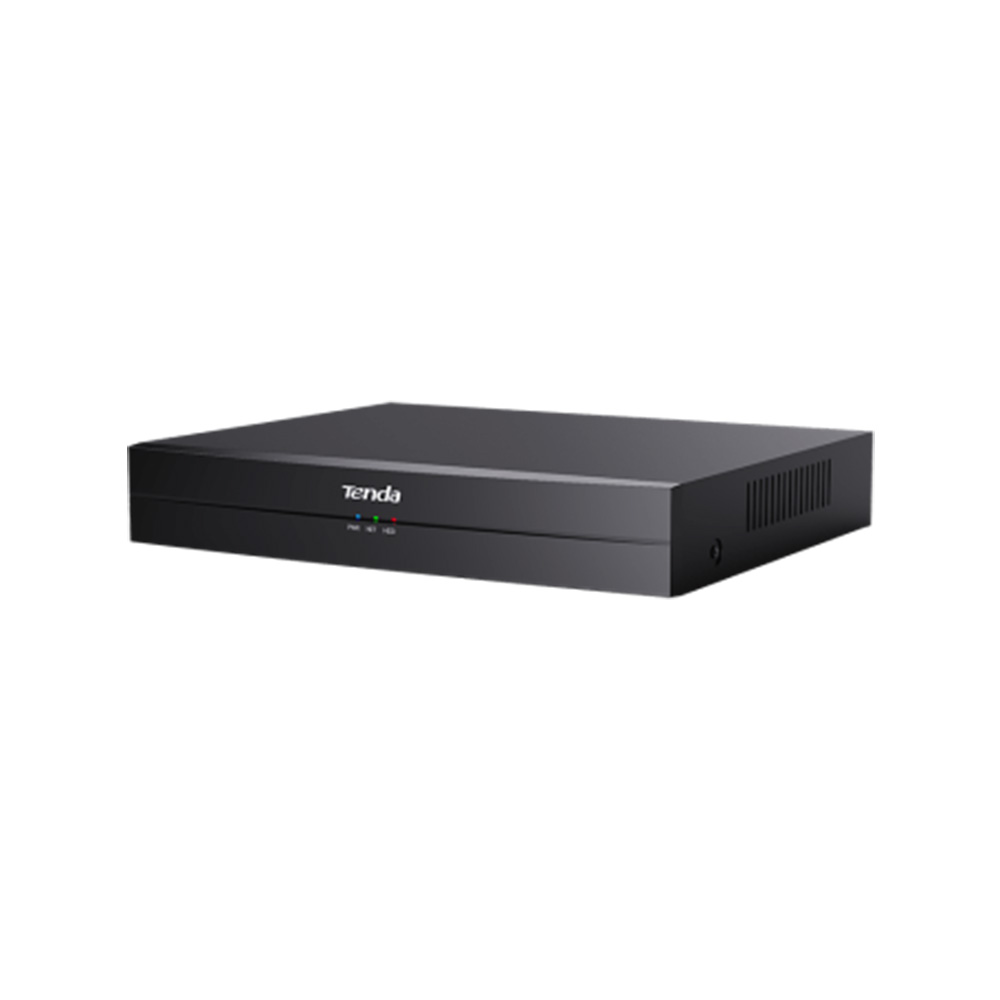

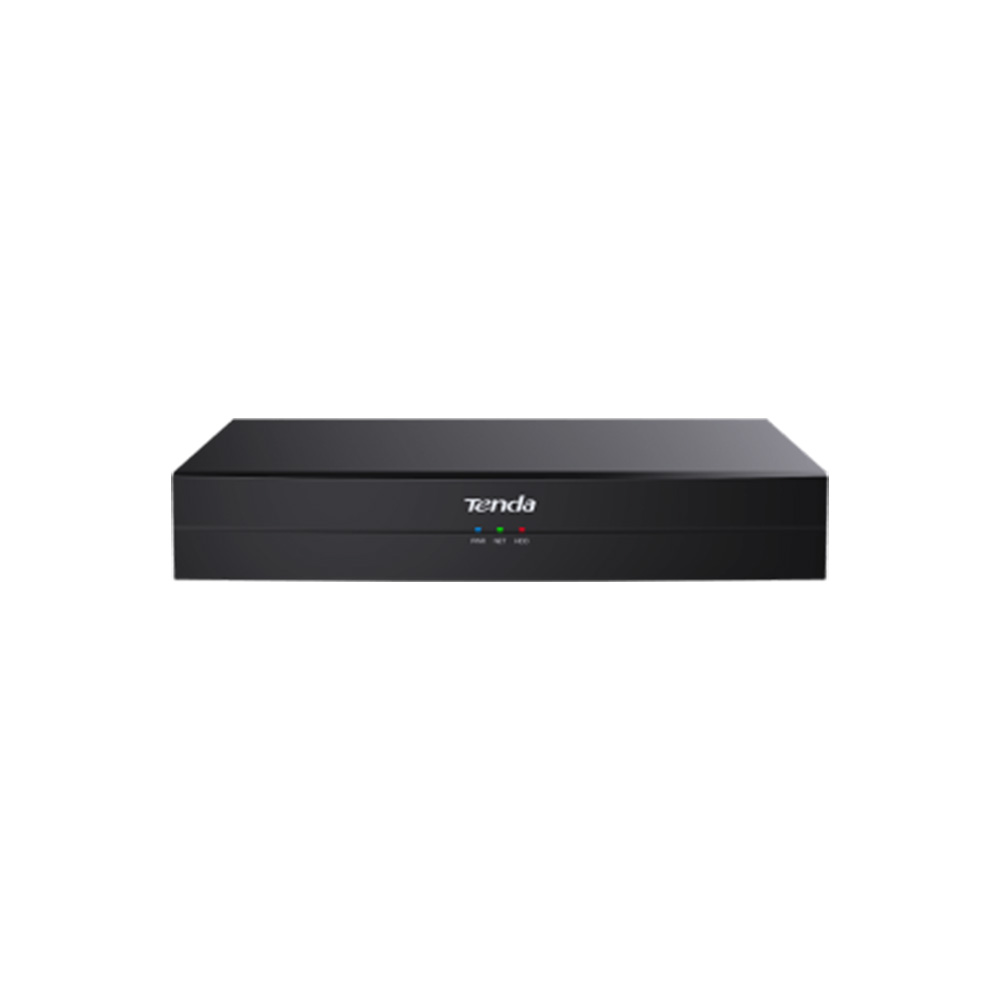

Tenda HD Network Video Recorder Poe 8 Channels TN3108-8P
Call for price
- 4K UHD Input & Output
- Transmission Distance: 250 meters
- Desktop mounting, wall mounting
- External Interface: 2 x USB 2.0
- IP Video Input: 8-ch, Up to 8MP
- Power Protection
- Plug and Play
- HDD Interface: 1 SATA 3.0 interface (Up to 10 TB for each HDD)
- Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
- PoE Port: 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports
- Application Remote Monitoring
- Channel cloud Storage
