Marsriva KP1 Plus Mini UPS 16,000mAh

The Marsriva KP1 Plus Mini DC UPS is designed to keep essential low-power devices running during electricity cuts or power switching. With a 59.2Wh lithium-ion battery, 16000mAh battery configuration, 4 DC outputs, USB-C and USB-A output, 0ms AC-to-DC transfer, wall-mount support, and flame-retardant casing, it is a practical backup power solution for Wi-Fi routers, modems, ONU devices, CCTV accessories, and other compatible low-power DC devices.

Key Features

• Keeps Wi-Fi Power On
  Helps keep compatible routers, modems, and network devices powered during power interruptions.
• 59.2Wh Lithium-Ion Battery
  Built with a lithium-ion battery system designed for backup power and daily UPS use.
• 16000mAh Battery Configuration
  Uses 3.7V / 4000mAh × 4 battery cells for extended runtime depending on connected device power usage.
• 4 DC Outputs + USB Ports
  Provides multiple output options for powering compatible DC devices and USB-powered devices.
• 0ms Seamless Switching
  AC-to-DC transfer helps connected devices continue running without interruption during power changes.
• Multiple DC Voltage Options
  Includes 12V, 9V, and 5V DC outputs for wider compatibility with supported devices.
• USB-C & USB-A Output
  Offers additional 5V output for compatible USB-powered devices.
• Wall-Mount Installation
  Built-in wall-mount slots make installation easier for router areas, network cabinets, or home setups.
• Efficient Air Cooling
  Air-cooling design helps maintain stable operation during long UPS usage.
• V-0 Flame-Retardant Casing
  ABS + PC casing helps improve safety and durability for daily use.

Technical Specifications

• Product Type: Mini DC UPS
• Brand: Marsriva
• Model: KP1 Plus
• Battery Capacity: 59.2Wh
• Battery Type: Lithium-ion
• Battery Specification: 3.7V / 4000mAh × 4
• Material: ABS + PC
• AC Input: 100VAC–280VAC
• PV Input: 12VDC–18VDC
• Total Output: 18W Max
• Net Weight: 483g
• Dimensions: 173 × 108 × 31.8mm
• Cooling: Air-cooling
• Mounting: Wall-mount slots
• Use Case: Router backup, modem backup, network device backup, CCTV accessory power, low-power DC device backup, and USB device power

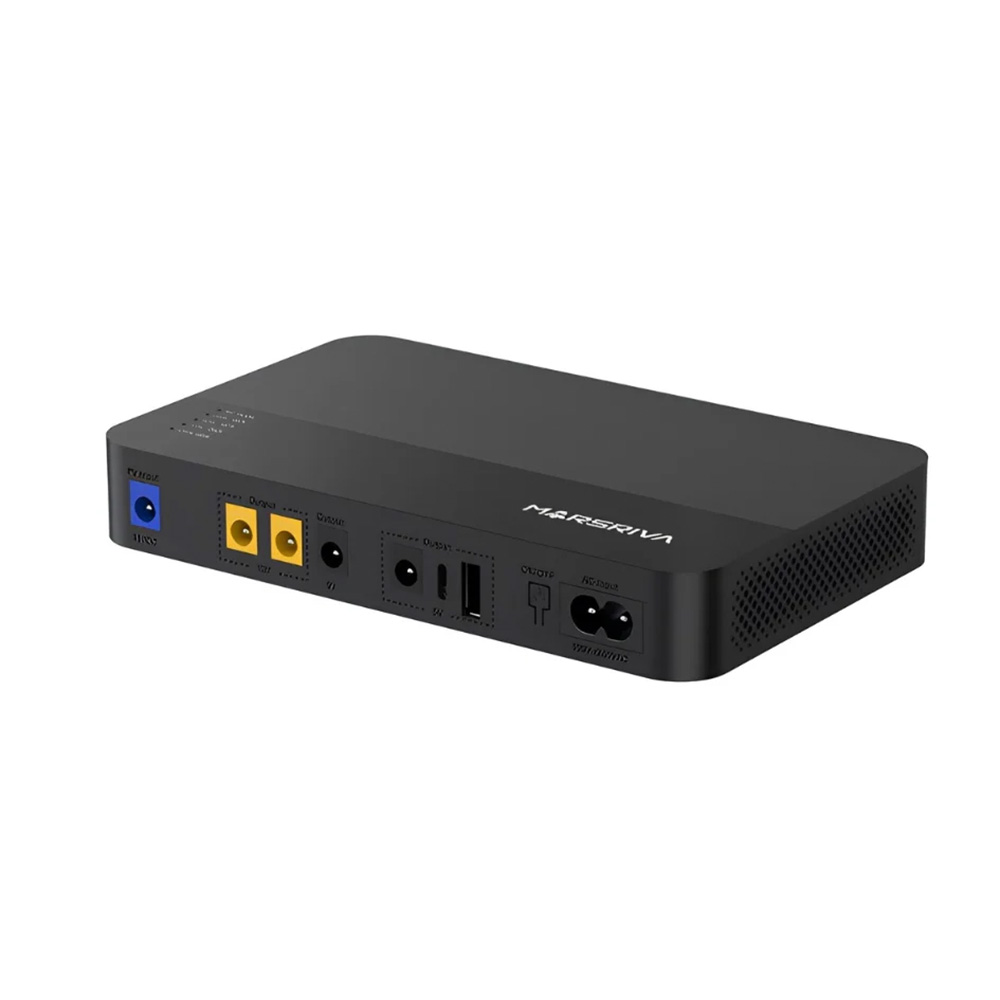

Output Ports

• DC1 Output: 12V / 1.5A
• DC2 Output: 12V / 1.5A
• DC3 Output: 9V / 2.0A
• DC4 Output: 5V / 2.4A
• USB-C Output: 5V / 2.4A
• USB-A Output: 5V / 2.4A
• Total Output Power: 18W Max

Input

• AC Input: 100VAC–280VAC
• PV Input: 12VDC–18VDC

Battery & Runtime

• Battery Capacity: 59.2Wh
• Battery Configuration: 3.7V / 4000mAh × 4
• Runtime depends on the connected device power consumption, output voltage, number of devices connected, and battery condition.

Operating Conditions

• UPS Mode Operating Temperature: 0°C–40°C
• Battery Mode Operating Temperature: -15°C–50°C
• Operating Humidity: Less than 75%RH
• Storage Temperature: 15°C–35°C
• Storage Humidity: 40–75%RH

Best Use Cases

• Wi-Fi router backup
• Internet modem backup
• ONU / fiber device backup
• Network switch backup
• CCTV accessory backup
• Low-power DC device backup
• Home internet during electricity cuts
• Office internet continuity
• Small network cabinet setup
• Wall-mounted router area

Compatibility

• Compatible 12V devices up to 1.5A per supported DC output
• Compatible 9V devices up to 2.0A
• Compatible 5V devices up to 2.4A
• USB-powered 5V devices
• Routers, modems, and small network devices within the 18W total output limit
• Devices using compatible DC connector sizes and polarity
