JBL OpenSound technology

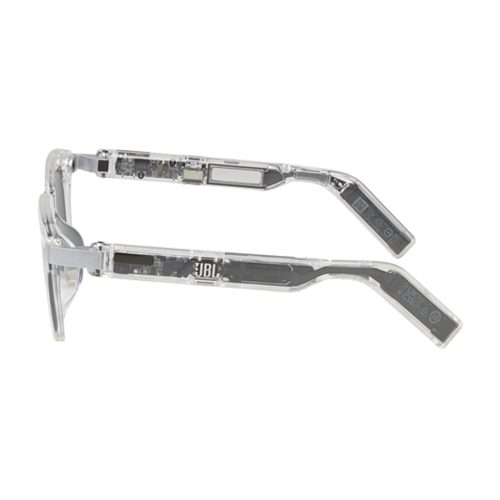

Each temple cleverly conceals JBL’s unique ultra-thin 25mm*9mm high amplitude rectangular speaker with a three-layer diaphragm, featuring a special algorithm for bass enhancement and frequency division processing. The JBL Soundgear Frames deliver an immersive, engaging and no-compromise sound experience while leaving your ears completely open, so you can still hear everything that’s happening around you.
Hands-free, crystal clear calls
The advanced beamforming 2-mic array on one temple, with dual-module environmental noise cancellation and nonlinear echo suppression algorithms, ensure you’ll always have high-quality conversations. Plus, the hydrodynamic design significantly reduces distortion from air friction. Simply put- enjoy crystal clear calls, wherever you are.
8 hours of play time, plus more
8 hours of playtime gives you music and calls throughout an entire day of work or fun. And if you need some more time, a quick 10-minute charge gives you another 2 hours.
Convenient USB Type-C chargingRunning out of juice? Quickly recharge both temples of the JBL Soundgear Frames at the same time with the USB Type-C Y-shaped cable provided in the box, or any other standard USB Type-C cable.
Instant and precise controlThe JBL logo doubles as an easy-to-find control panel that gives you fast, accurate control over your frames.
JBL Headphones appUse the JBL Headphones app on your device to tweak your sound and customize the gestures according to your needs. Choose from six EQ presets or a fully customizable 10-band equalizer to adjust highs, mids, and lows – so your music is just right for you.
Rugged and water resistantNot only are JBL Soundgear Frames lightweight and comfortable enough to wear all day long, they’re also IP54 certified water resistant. So a little rain doesn’t mean you have to cut your afternoon jog short.

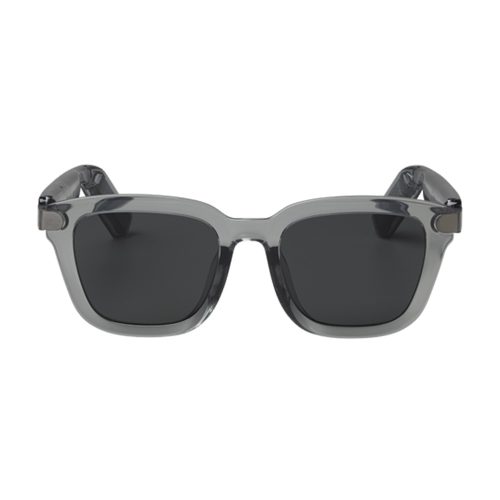

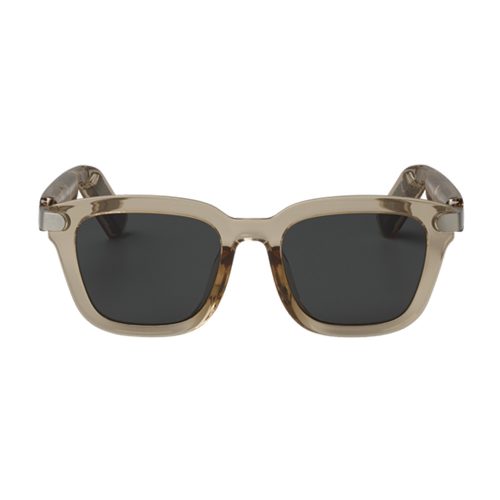

Style and comfortThe newly designed ultra-thin rectangular speakers are mounted inside the slim temples, greatly enhancing aesthetics and comfort. The durable, flexible, lightweight frames come in three trendy translucent colors—Onyx, Pearl, and Amber—all with a choice of square or round frames. The semi-transparent lenses feature UV A/B blocking. You can also have a professional optician fit your Soundgear Frames with prescription lenses.
Wear and playNo need to find the power button. The speakers turn on when you open the frames and off when you close them.
Style meets sound They sound even better than they look Wear your soundtrack The look you love. The sound you need.
General Specifications
- Power supply: 5 V ⎓ 0.5 A *2
- Material: Frame-Plastic (TR90), Hinge-metal (SUS316), Temple housing- Plastic (PC)
- IPX rate: IP54
Audio Specifications
- Driver size: 25mm x 9 mm/0.98″ x 0.35″ Dynamic Driver
- Frequency response: 100 Hz – 18 kHz
- Impedance: 20 ohm
- Sensitivity: 114 dB SPL@1 kHz
- Maximum SPL: 90 dB
- Microphone sensitivity: -38 dBV/Pa@1 kHz
- Maximum operation temperature: 45 °C
Dimensions
- Dimensions Round shape (L x W x H): 160.87mm * 150.54mm * 53.68mm / 6.33″ 5.93″ 2.11″
- Dimensions Square shape (L x W x H): 160.21 mm x 152.54 mm x 50.83 mm/6.31″ x 6.01″ x 2.00″
Control and Connection Specifications
- Bluetooth version: 5.2
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: <12 dBm (EIRP)
- Bluetooth transmitter modulation: GFSK, π/4-DQPSK, 8DPSK
Battery
- Battery type: Lithium-ion battery (110 mAh/ 3.8 V)
- Charging time: 2 hrs from empty
What’s in the box?
- 1 x Soundgear Frame audio glasses

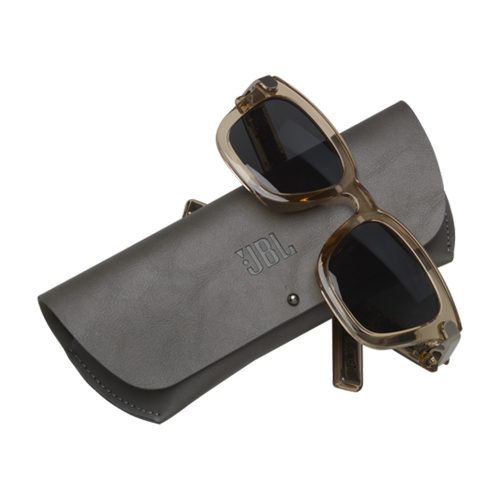

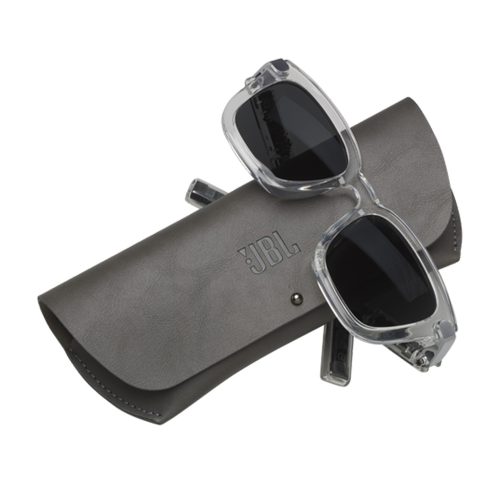

- 1 x Carrying case
- 1 x USB Type-C Y-shaped charging cable
- 1 x Warranty / Warning (W / !)
- 1 x product QSG/ Safety Sheet (S / i)
