| K4P-4TR | |
| 4 Channel PoE HD Video Security Kit | |
| Video&Audio Input | |
| IP Video Input | 4-ch |
| IP Video Resolution | 4MP |
| Input Bandwidth | 60 Mbps |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Output | |
| HDMI Output | 1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| Output Bandwidth | 60 Mbps |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Decoding | |
| Video Decoding Format | H.265, H.264 |
| Audio Decoding Format | G.711A, G.711U |
| Recording Resolution | 4MP, 3MP, 1080P, 720P, D1 |
| Decoding Capability | 4-ch@1080P (30 fps) |
| Stream Type | Video, Video & Audio |
| Recording Management | |
| Record Mode | Normal, Alarm |
| Playback Mode | Instant, Channel, File, Tag |
| Sync Playback | Up to 4-ch |
| Backup Mode | USB device |
| Network Managemants | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Network Protocol | HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS |
| Client | TDSEE (mobile phone), TDSEE STUDIO (PC) |
| Web Browser | Plug-in free live view : Chrome, Edge, Opera, Safari |
| PoE | |
| PoE Port | 4 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤40W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interfaces | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 51 VDC, 1.25 A |
| Dimension | 200 mm × 200 mm × 48 mm |
| Weight (Without HDD) | 510g (1.12lb) |
| Certification | CCC, CE, FCC, RoHS,UKCA |
| Installation Method | Desktop mounting, Wall mounting |
| Temperature | Operating temperature: 0°C – 40°C (32°F – 104°F) |
| Storage temperature: -30°C – 70°C (-22°F – 158°F) | |
| Humidity | Operating humidity: 10% – 90% RH (non-condensing) |
| Storage humidity: 5% – 95% RH (non-condensing) | |
| Camera | |
| Image Sensor | 1/3” CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 4 IR Lights |
| Infrared Fill Light Distance | Up to 50 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens | |
| Lens Type | 4 [email protected] |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Video | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Audio | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Network | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
| External Interface | |
| Audio Input | Built-in microphone |
| Generals | |
| Power | PoE: IEEE 802.3af |
| Dimension | 85mm x 85mm x 166mm |
| Weight | 204g |
| Protection Level | IP67 |
| Installation Method | Pendant mounting, Wall mounting (with bracket) |
| Certification | CE, FCC, RoHS,UKCA |
| Temperature | Operating temperature: -20°C – 60°C (-4°F – 140°F) |
| Storage temperature: -40°C – 70°C (-40°F – 158°F) | |
| Humidity | Operating humidity: 10% – 95% RH (non-condensing) |
| Storage humidity: 3% – 95% RH (non-condensing) | |
| Kit | |
| Dimension | 380mm x 283mm x 305mm |
| Weight (With Package) | 5.25kg |
| Package Contents | PoE Network Video Recorder x 1 |
| Power adapter (51V 1.25A) x 1 | |
| Screw kit (NVR) x 1 | |
| Mouse x 1 | |
| PoE Camera x 4 | |
| Waterproof kit x 4 | |
| Camera bracket x 4 | |
| Screw kit (camera) x 4 | |
| Screwdriver x 1 | |
| HDMI cable x 1 | |
| Surveillance sticker x 1 | |
| 1 m Ethernet cable x 1 | |
| 18 m Ethernet cable x 2 | |
| 30 m Ethernet cable x 2 | |
| User manual x 1 |

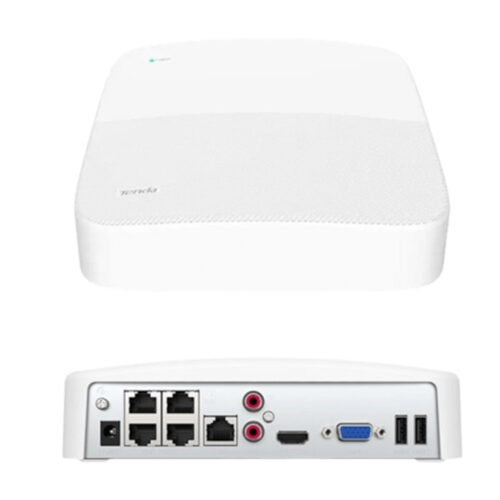

Tenda 4 Channel PoE HD Video Security Kit 1 4channel Video Recorder, 4 Bullet Cameras POE K4P-4TR
Call for price
- Plug and Play
- Complete Accessories
- 4MP HD Recording
- 4K UHD Output
- AI Human Detection
- H.265 Video Compression
- Channel Cloud Storage
- Remote Audio Pickup
- App Remote Monitoring
- IP67 Waterproof and Dustproof
