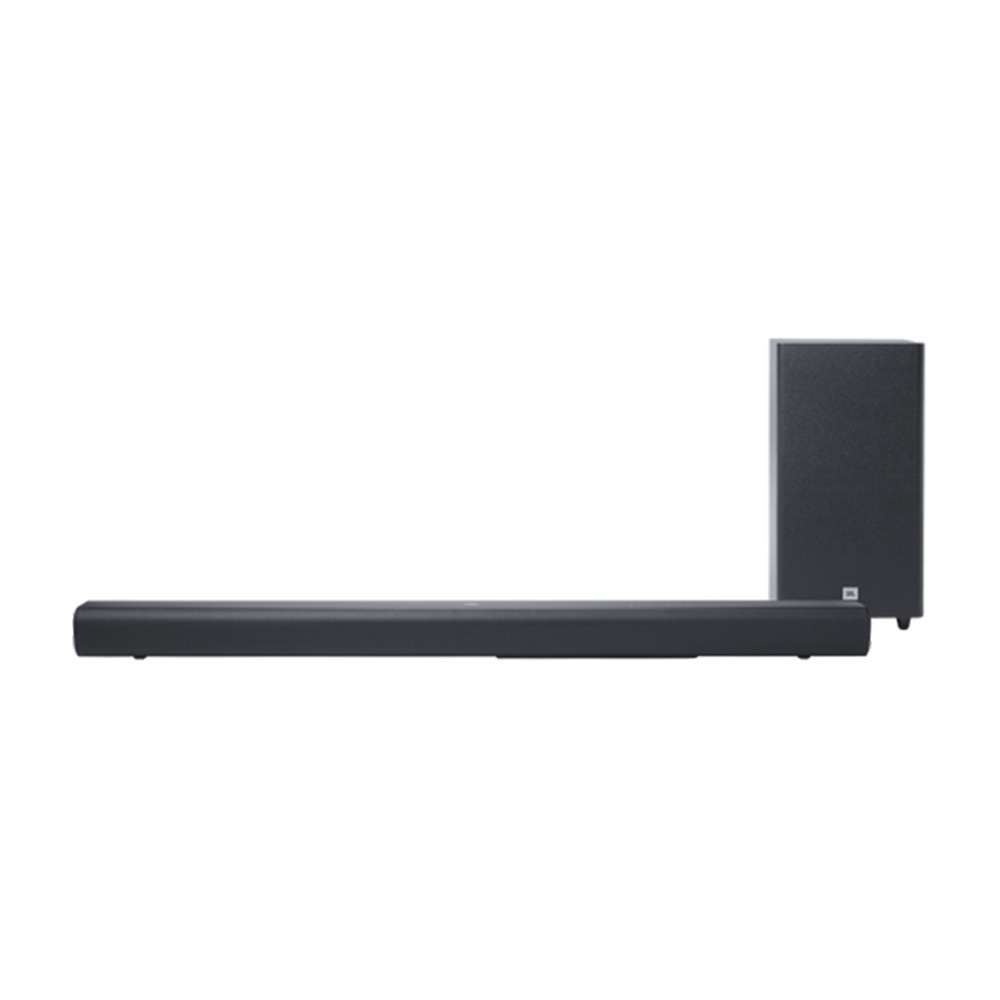

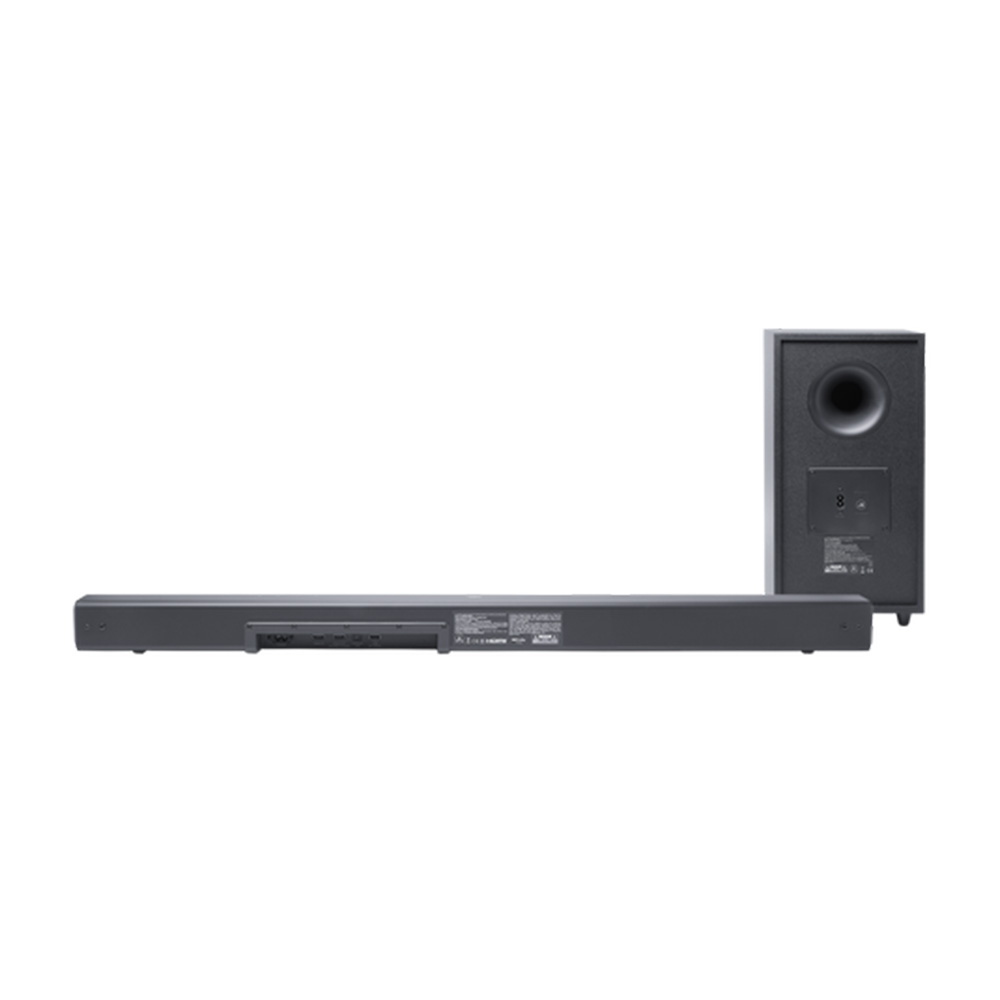

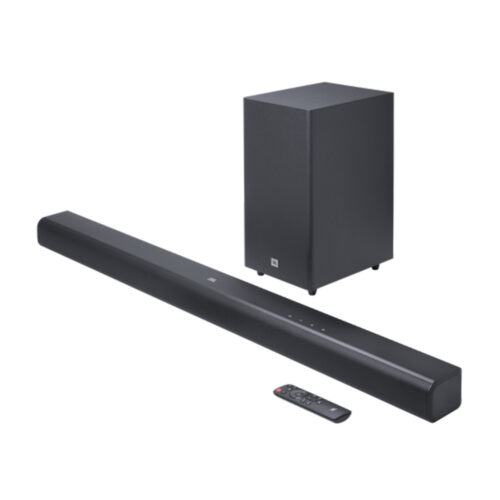

JBL Cinema SB580

Thunderous Bass. Immersive 3D sound

Step into a world of immersive home audio with the JBL Cinema SB580 soundbar. An explosive 440 watts of powerful Virtual Dolby Atmos® sound in a compact design plus thunderous extra-deep bass from a 6.5” wireless subwoofer combine to surround you in a whole new level of sound. A dedicated center channel means TV and film dialogue is always crystal clear. High-resolution HDMI eARC, HDMI, or optical connections give you plenty of easy set-up options. And when the TV is off, seamless Bluetooth connectivity means you can use it to play all your favorite streaming music and podcasts from any device.

General Specifications

• Model: CINEMA SB580
• Sound system: 3.1 channel
• Power supply: 100 – 240V AC, ~ 50/60Hz
• Total speaker power output (Max @THD 1%): 440W
• Soundbar output power (Max @THD 1%): 240W
• Subwoofer output power (Max. @THD 1%): 200W
• Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

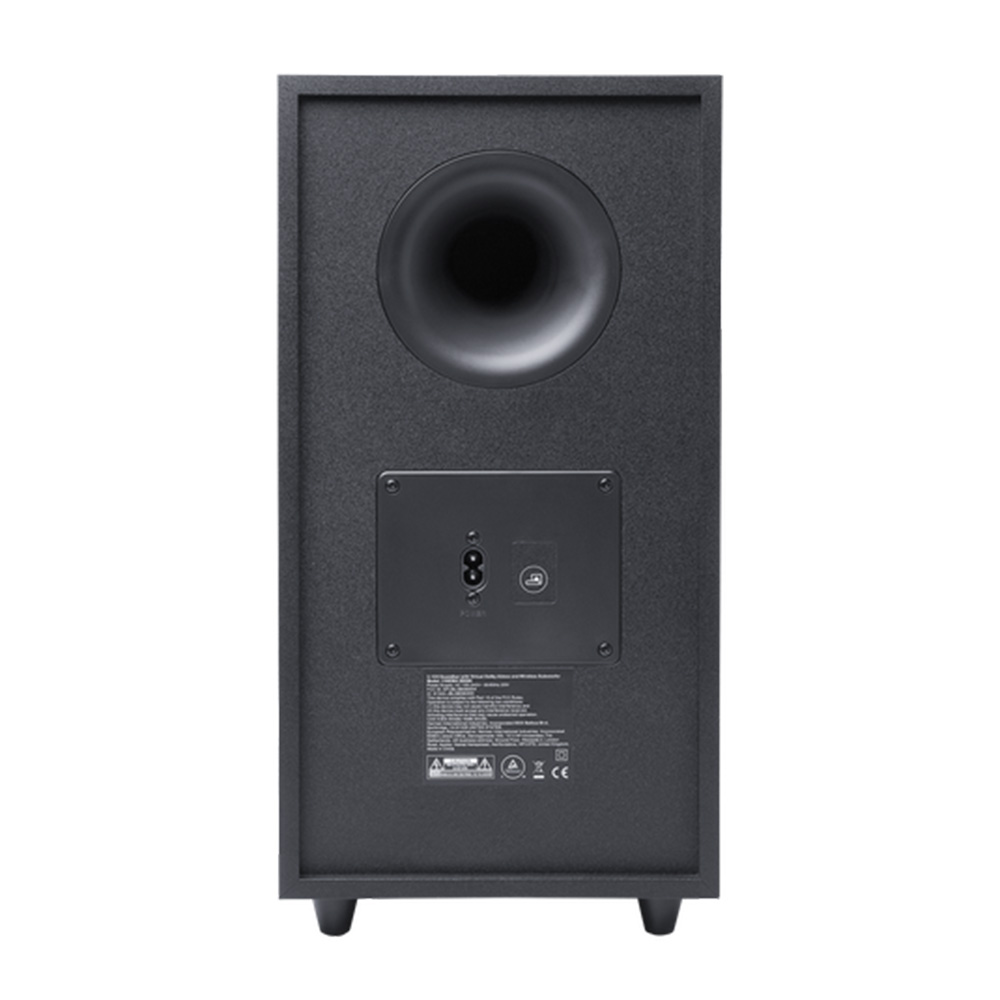

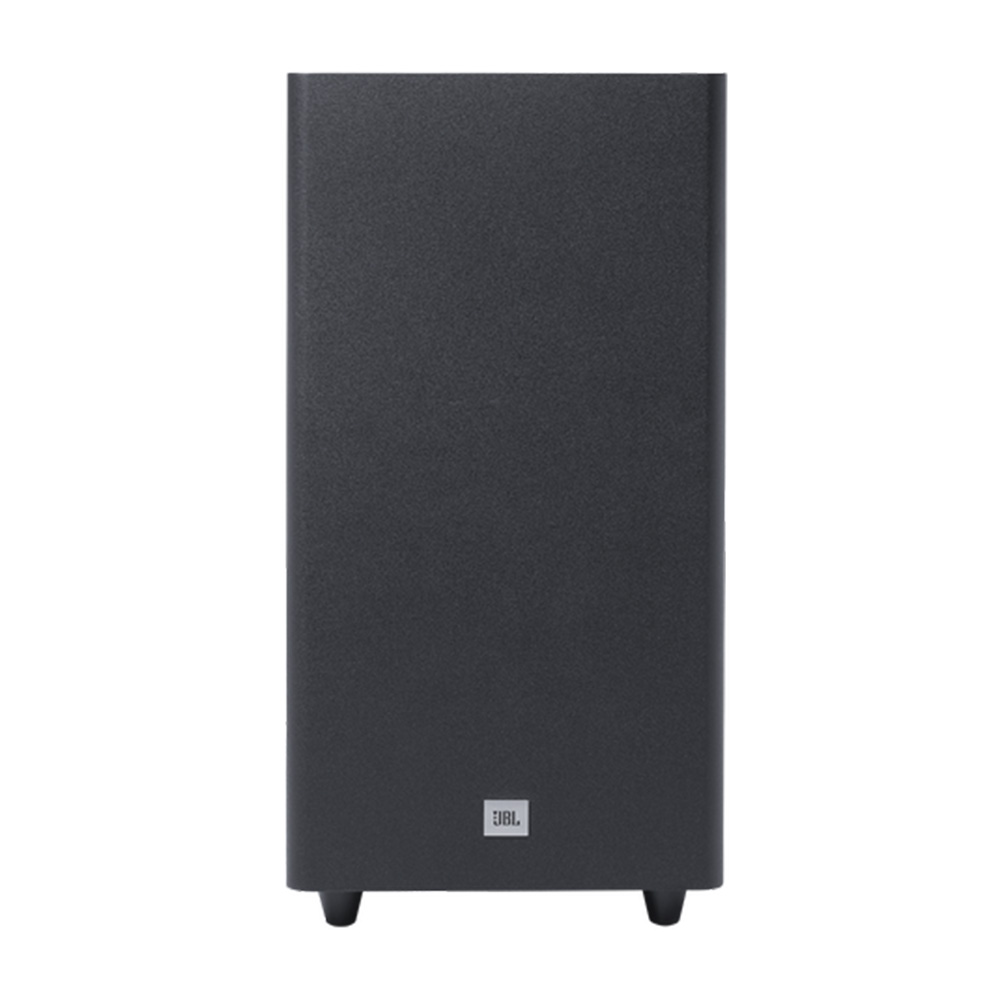

• Subwoofer transducer: 6.5” (165 mm), wireless subwoofer
• Standby power: < 0.5 W
• Operating temperature: 0°C – 45 °C

Audio Specifications

• Frequency response :40Hz-20kHz (-10dB)
• Audio inputs :1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

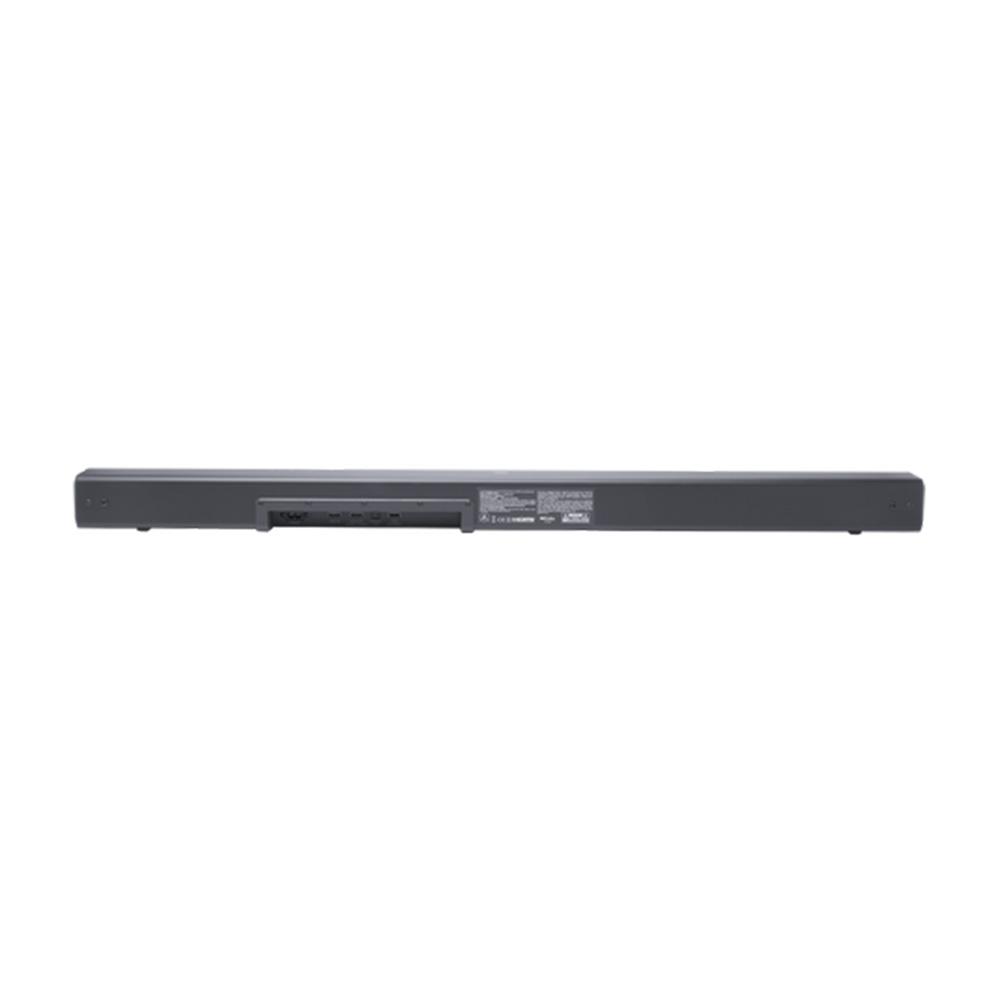

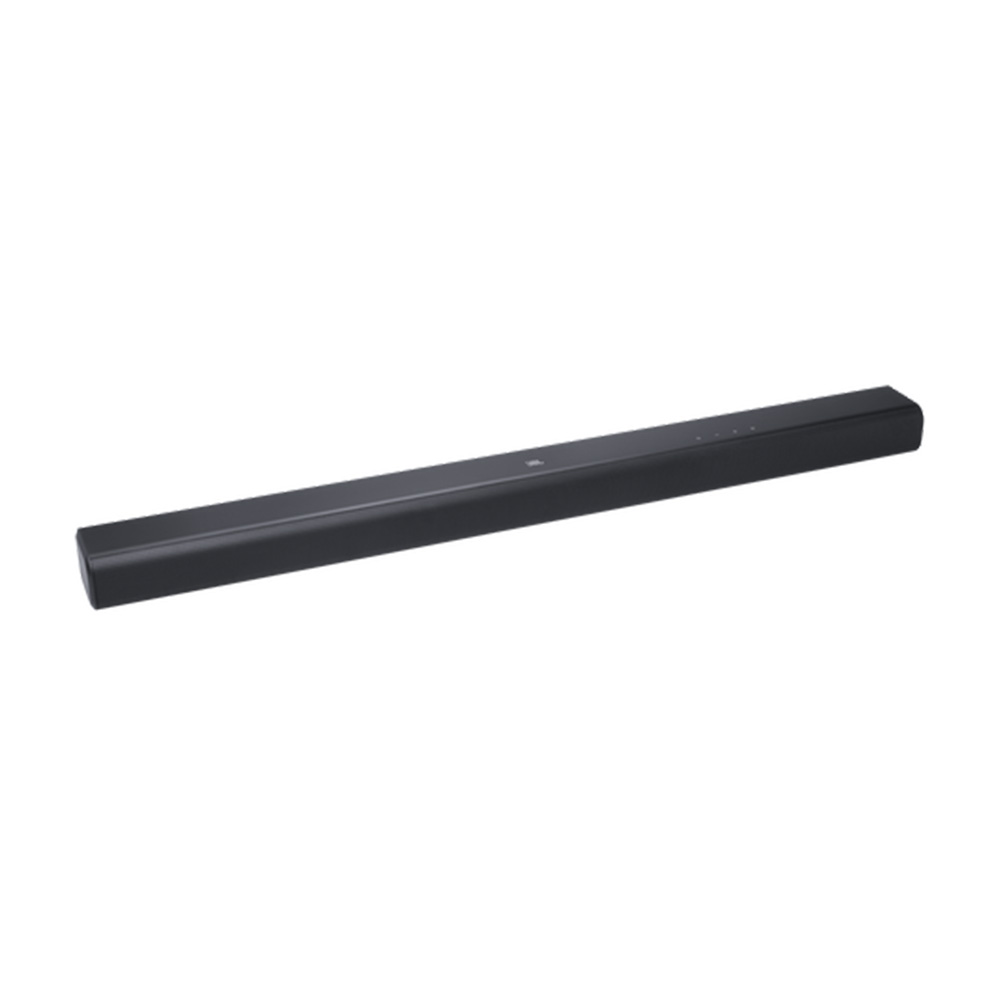

• Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
• Subwoofer dimensions (W x H x D): 200 x 404 x 250 mm / 7.9″ x 15.9″ x 9.9″
• Soundbar weight: 2.6kg / 5.7 lbs
• Subwoofer weight: 5.7 kg / 12.6 lbs
• Packaging dimensions (W x H x D): 1025 x 235 x 397 mm / 40.4″ x 9.3″ x 15.6″
• Packaging Weight: 10.4 kg / 22.9lbs

Control and Connection Specifications

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file formats: mp3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 – 48 kHz
• Bluetooth version: 5.3
• Bluetooth profile: A2DP 1.3, AVRCP 1.6
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth Max. transmitting power: <10 dBm (EIRP)
• Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G wireless transmitter frequency range: 2402-2481 MHz
• 2.4G wireless transmitter power: ＜10dBm (EIRP）
• 2.4G wireless modulation: GFSK

Video Specifications

• HDMI video input: 1
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3

• Soundbar
• Wireless subwoofer

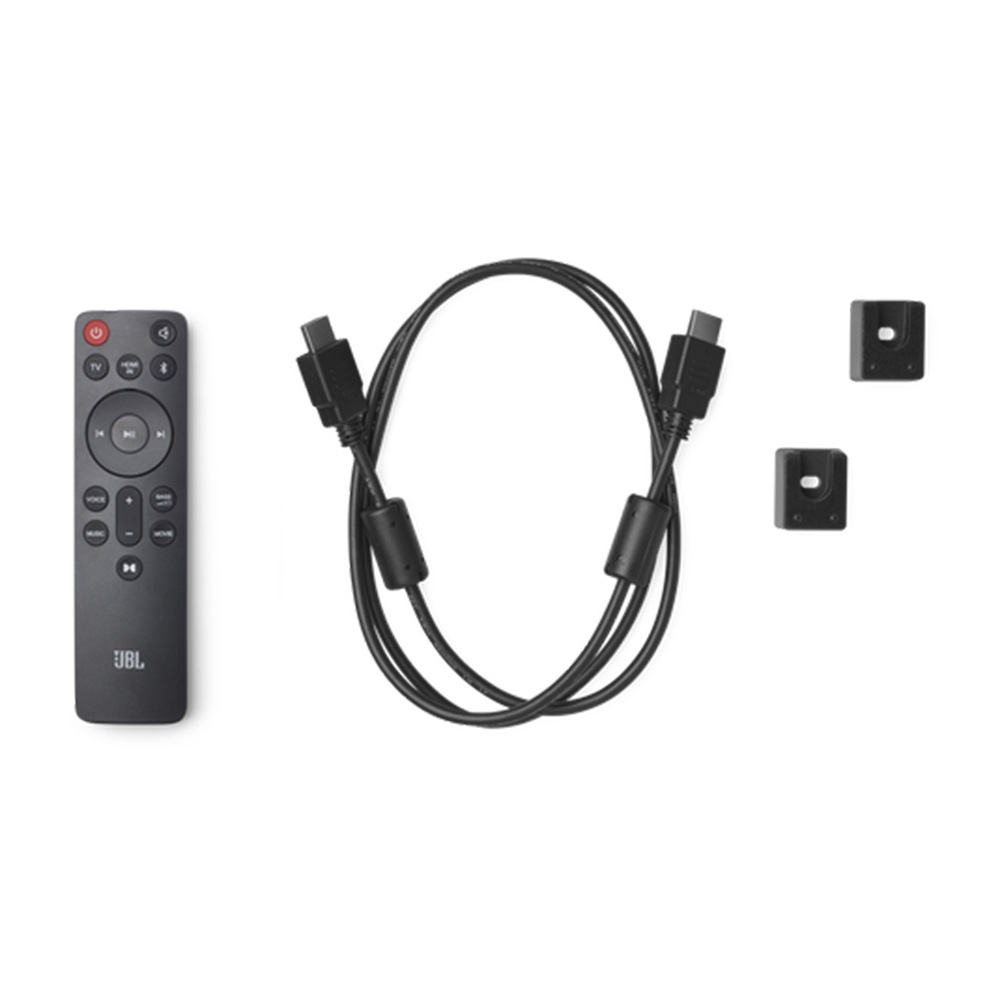

• Remote control with batteries
• Power cords (up to 8pcs depending on region SKUs)
• HDMI cable
• Wall-mount bracket kit with screws
• Quick start guide
• Warranty card
• Safety sheet
