| Image Sensor | 1/3 Progressive Scan CMOS sensor |
| Day and Night | ICR type |
| Bracket Angle Adjustment | Pan:0°to 260° |
| Focal Length | Fixed Lens:4mm |
| PT Lens:6mm | |
| Aperture | Fixed Lens:F1.6 |
| PT Lens:F1.6 | |
| FOV | Fixed Lens: |
| Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4° | |
| PT Lens: | |
| Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4° | |
| Supplementary Light | 6 IR Lights, 6 Spotlights |
| Supplementary Light Distance | Up to 30 m/100 ft (depending on environment) |
| IR Wavelength | 850nm |
| Night Vision Mode | Smart Mode, Full Color Mode, Black & White Mode |
| Video Encoding Format | Fixed Lens:H.265, H.264 |
| PT Lens:H.265, H.264 | |
| Main Stream Resolution | Fixed Lens:2304 ×1296, 1920 × 1080, 1280 × 720 |
| PT Lens:2304 ×1296, 1920 × 1080, 1280 × 720 | |
| Sub Stream Resolution | Fixed Lens:640 × 360 |
| PT Lens:640 × 360 | |
| Frame Rate | Fixed Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps |
| PT Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps | |
| Bit Rate | Fixed Lens:512kbps — 4096kbps |
| PT Lens:512kbps — 4096kbps | |
| Bit Rate Control | Fixed Lens:CBR,VBR |
| PT Lens:CBR,VBR | |
| Audio Encoding Format | G.711A, G.711U, AAC |
| Audio Sampling Rate | 8 kHz |
| Audio Communication | Two-way Audio, Voice Input |
| Image Enhancement | DWDR, BLC, HLC, 3D DNR |
| Privacy Mask | 4 Areas |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| ONVIF | Support |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets |
| Web Browser | Plug-in free live view: Chrome, Edge, Opera |
| Pan Movement Range | 0°–355° |
| Tilt Movement Range | 0°–90° |
| Preset | 6 |
| Patrol | Panoramic Patrol, Preset Patrol |
| Antenna | Internal antenna |
| Wireless Standard | IEEE 802.11 b/g/n/ax |
| Transmission Rate | Up to 287Mbps |
| Channel Width | 20/40 MHz |
| Modulation | DSSS/OFDM/OFDMA |
| Frequency Band | 2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
| Transmit Power | 2.4GHz: <0.1W(EIRP) |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE |
| Smart Detection | Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection |
| Smart Linkage | Sound&light Alert, Dual-lens Linkage Tracking |
| DIY Audio | 3 Customized Audios |
| Audio Input | Built-in MIC |
| Audio Output | Built-in Speaker |
| Storage | Built-in Micro SD Card Slot, Up to 512 GB |
| Reset Button | Support |
| LED Indicator | Dual Color(red & blue) LED Indicator |
| Power | 12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug |
| Material | Plastic |
| Product Dimension | 203mm x 122mm x 62mm(8.0 ×4.8 × 2.4) |
| Package Dimension | 240mm x 145mm x 193mm(9.4 ×5.7 × 7.6) |
| Product Weight | 527g(1.16lb) |
| With Package Weight | 802g(1.77lb) |
| Protection Level | IP65 |
| Installation Method | Wall Mounting, Ceiling Mounting, Pole Mounting |
| Certification | CE, RoHS, FCC, RCM, UKCA |
| Temperature | Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) | |
| Humidity | Operating Humidity: 10% ~ 95% RH (non-condensing) |
| Storage Humidity: 3% ~ 95% RH (non-condensing) | |
| Package Contents | Camera |
| Power Adapter (cord length: 3m) | |
| Installation Template | |
| Mounting Bracket | |
| Mounting Accessories Kit | |
| Waterproof Kit | |
| Quick Installation Guide |
New

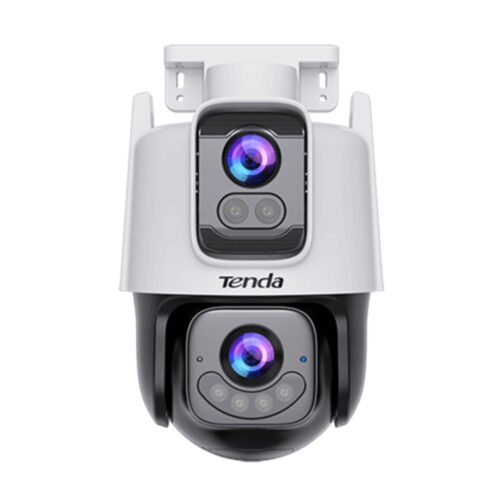

Tenda Ip Wifi Camera Ch9 Dual Lens 6MP Outdoor 30 Meters Night Vision
Call for price
- Dual lenses for double areas protection
- PT lens for close up views
- Dust and Water Protection
- Mobile Application management
- Audio & light alert active defense to deter intruders
- Wi-Fi 6 Technology for Stable and Smooth Video
- Full-color night vision (light for 30 meters)
- 6MP resolution video(3MP+3MP), 360° visual coverage
- Sharing Camera to Your Family to Protect Safety Jointly
- Cloud storage/SD Card )up to 512MB), NVR/NAS
- Power Plug 12V DC,1A, 5.5mm & 2.1mm
- full-duplex two-way audio, Voice Input
- Ethernet port 1 RJ45, 10Mbps/100Mbps auto-negotiation
- Dual-lens Linkage, Tracking Active Objects Automatically or Manually
- Can access the video via wireless or wired connection to the Internet
