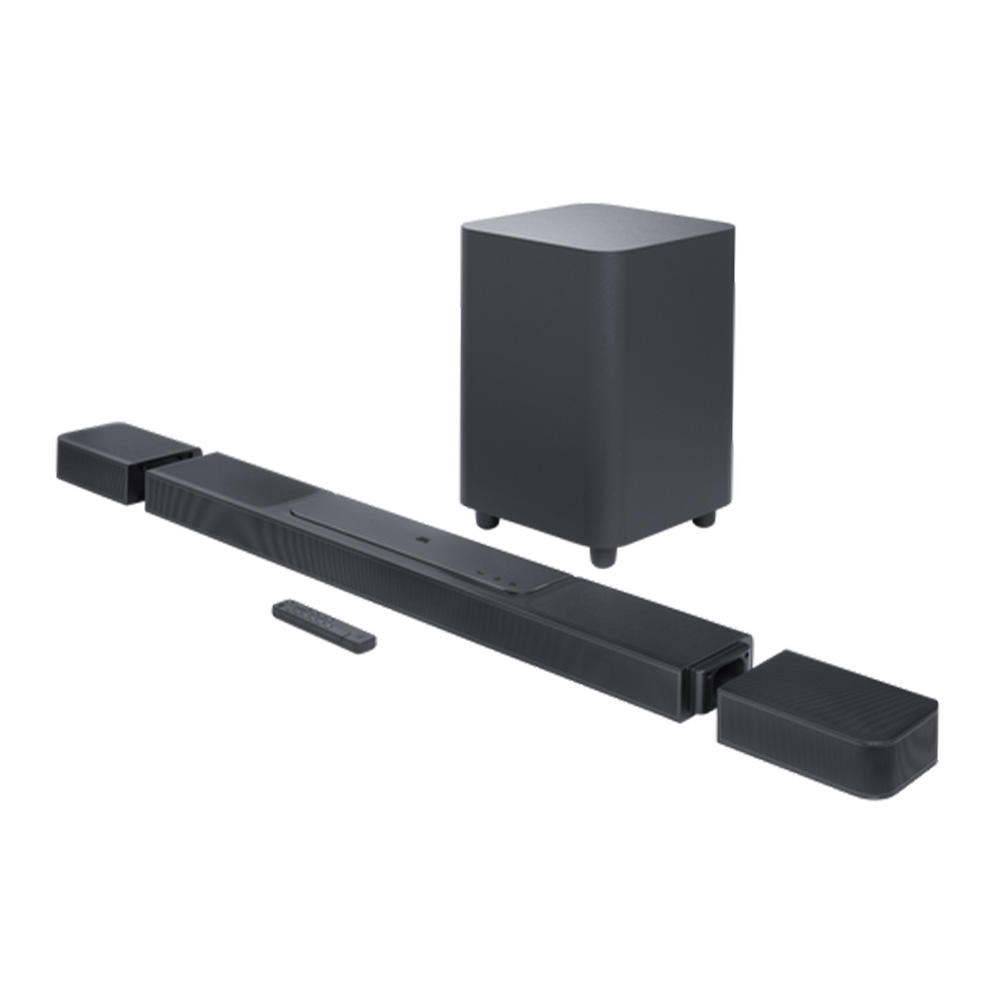

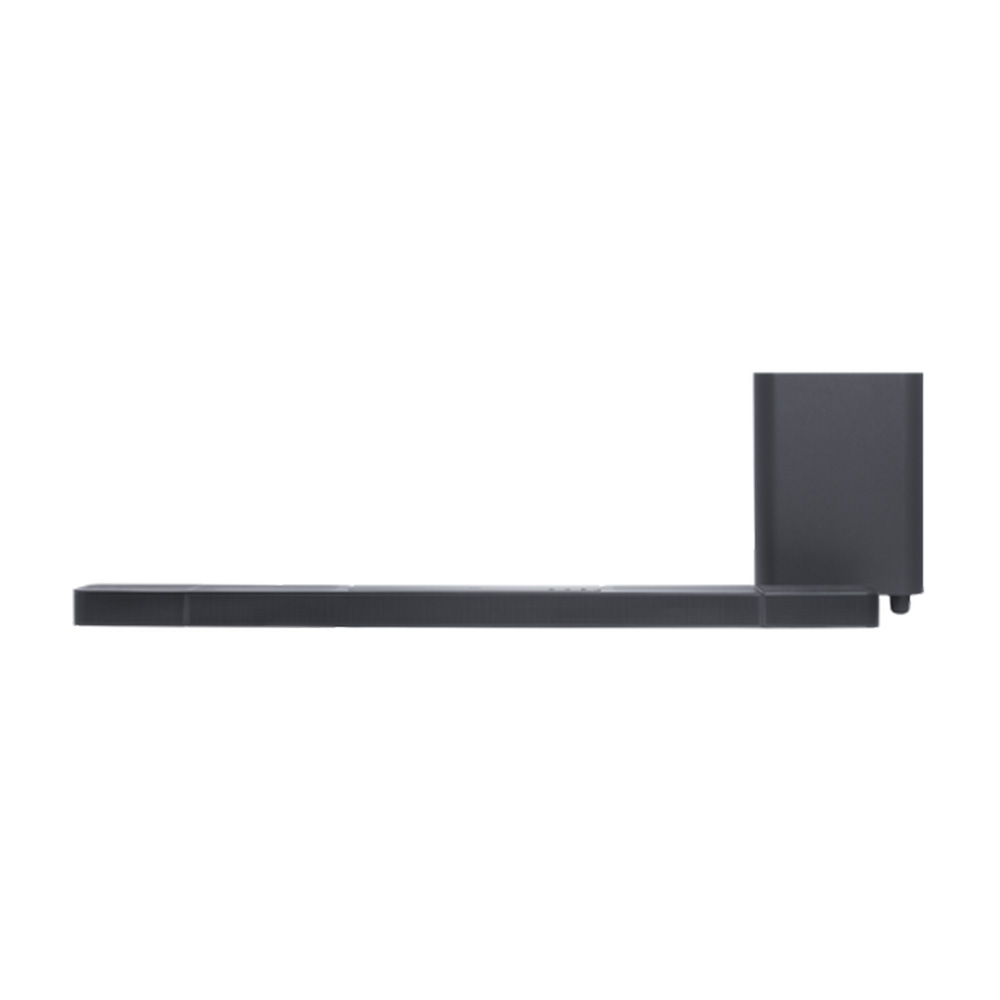

JBL BAR 1300 in Lebanon with Warranty

True Dolby Atmos, DTS:X, and MultiBeam Surround Sound

Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300 delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience.

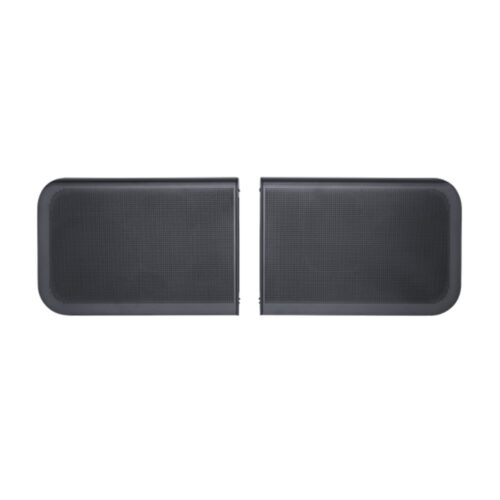

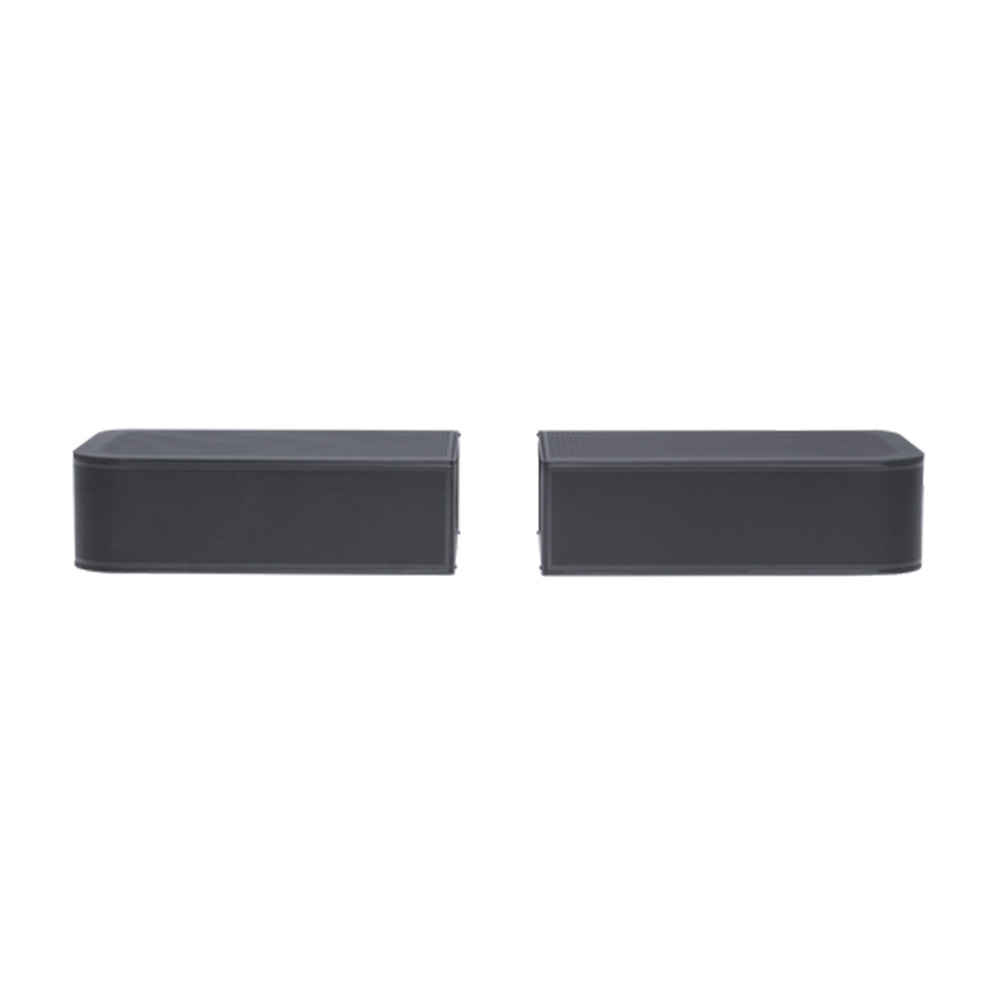

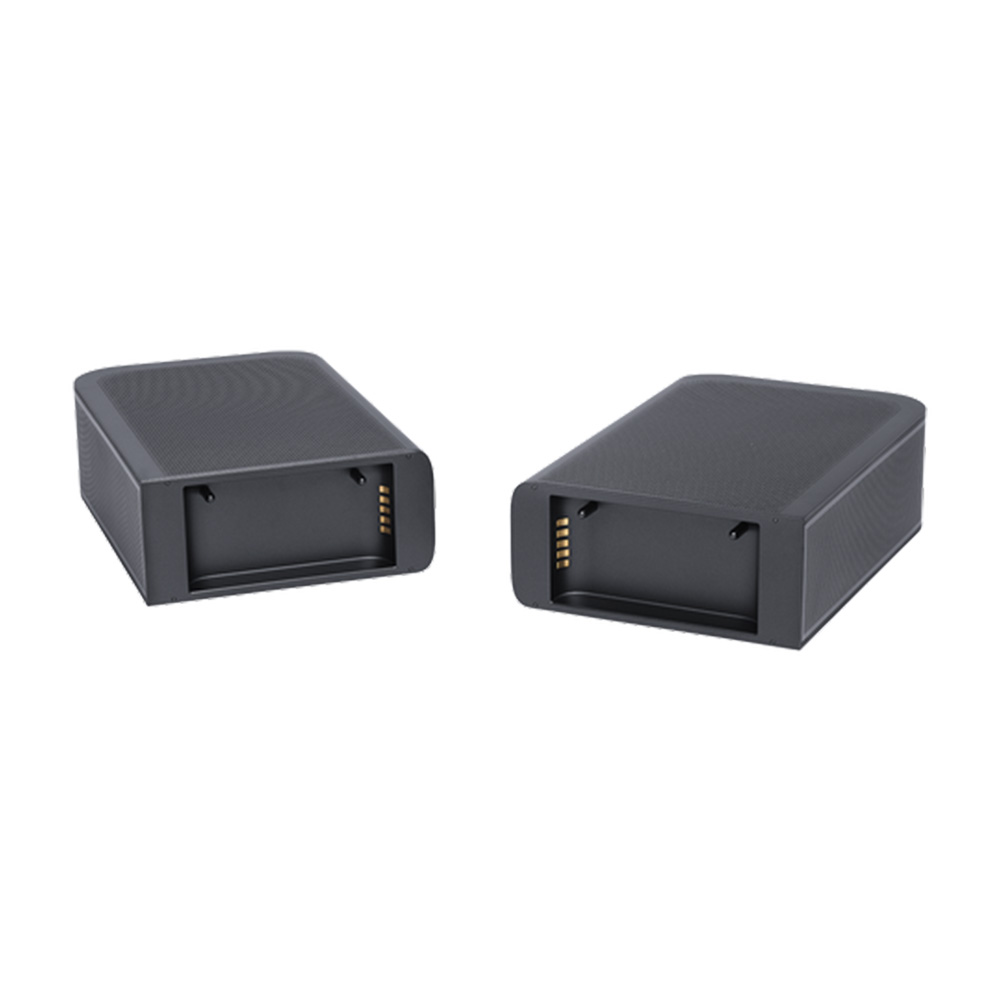

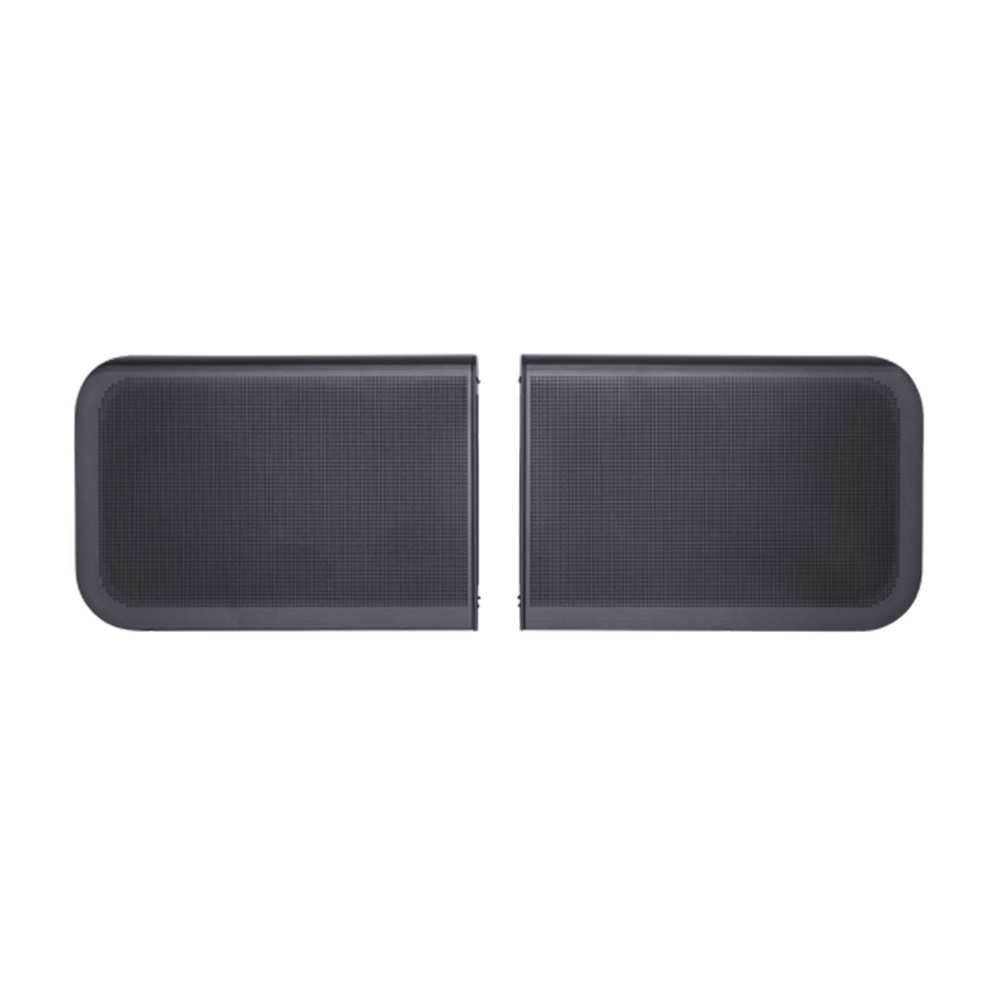

Real surround sound with detachable surround speakers

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio.

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

General Specifications

Sound system11.1.4 channel
Power supply100 – 240V AC, ~ 50/60Hz
Networked standby power< 2.0W
Operating temperature0°C – 45°C

Audio Specifications

Total speaker power output (Max @THD 1%)1170W
Soundbar output power (Max @THD 1%)650W
Surround speaker output power (Max @THD 1%)2x 110W
Subwoofer output power (Max. @THD 1%)300 W
Soundbar transducer6x (46×90)mm racetrack drivers, 5x 0.75″ (20mm) tweeters, 4x 2.75″ (70mm) up-firing full-range drivers
Surround speaker transducer(46×90)mm racetrack driver, 0.75″ (20mm) tweeter, 2.75″ (70mm) up-firing full-range driver, 2x (48×69)mm rounded rectangle Passive Radiators
Subwoofer transducer10” (260mm)
Frequency response33Hz – 20kHz (-6dB)
Audio inputs1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D)1376 x 60 x 139 mm / 54.2″ x 2.4″ x 5.5″
Main soundbar dimensions (W x H x D)1000 x 60 x 139 mm / 39.4″ x 2.4″ x 5.5″
Detachable surround speaker dimensions (each) (W x H x D)202 x 60 x 139 mm / 8″ x 2.4″ x 5.5″
Subwoofer dimensions (W x H x D)305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
Soundbar weight4.3kg / 9.5 lbs
Detachable surround speaker weight (each)1.25 kg / 2.75 lbs
Subwoofer weight10 kg / 22 lbs
Packaging dimensions (W x H x D)381 x 1107 x 477 mm/ 15″ x 43.6″ x 18.8″”
Packaging Weight21.45 kg / 47.2 lbs

Control and Connection Specifications

USB portType A
USB rating5V DC, 0.5A
Supporting file formatMP3
MP3 codecMPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate16 – 48 kHz
MP3 bitrate80 – 320 kpbs
Bluetooth versionMain bar – 5.0, Detachable surround speaker – 5.2
Bluetooth profileMain bar – A2DP 1.2 and AVRCP 1.5, Detachable surround speaker – A2DP 1.3 and AVRCP 1.6
Bluetooth transmitter frequency range2400MHz – 2483.5MHz
Bluetooth transmitter power<15dBm (EIRP)
Wi-Fi networkIEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power< 20dBm (EIRP)
5G Wi-Fi transmitter frequency range5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency range2406 – 2474MHz
2.4G wireless power＜10dBm (EIRP）

Battery

Lithium battery3.635V, 6600 mAh
Detachable surround speaker playtimeup to 12 Hours (may vary according to content type and volume level)

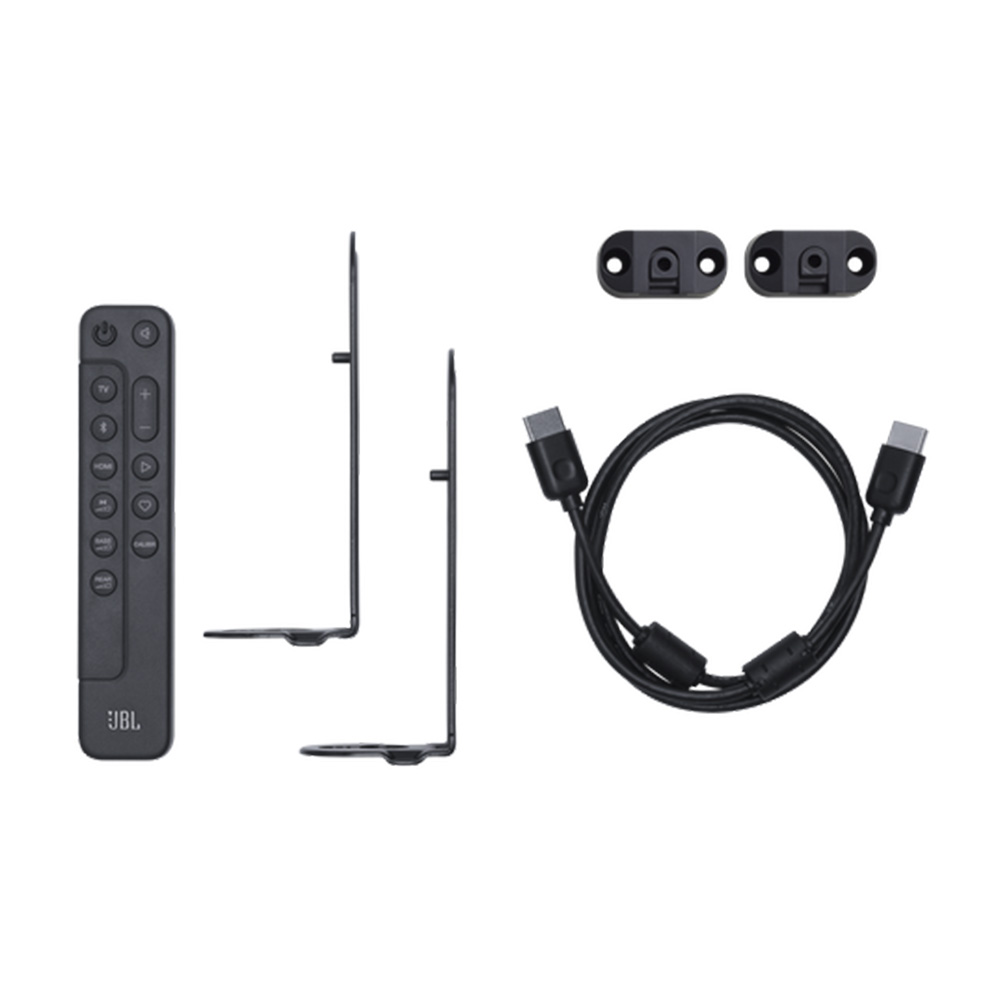

What’s in the box?

1x Main soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
2 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template
